185PC05DT
SENSOR 5PSID 0.2"" 7VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

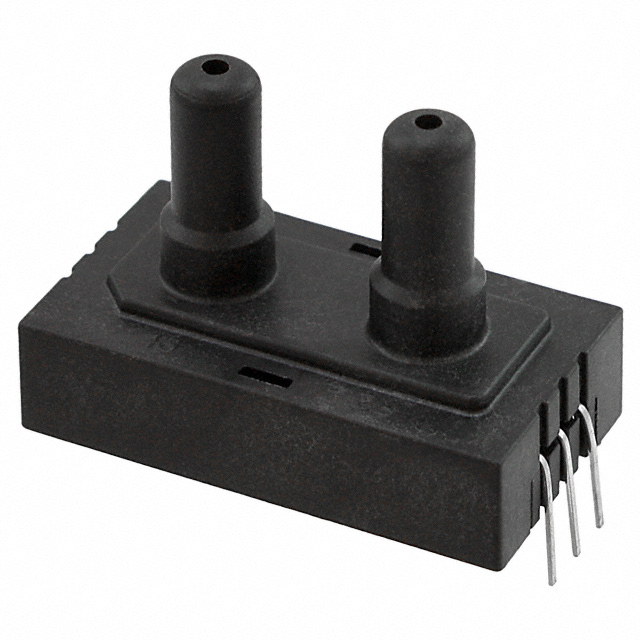

Honeywell Sensing and Productivity Solutions 180PC series differential pressure sensor, part number 185PC05DT. This amplified, temperature-compensated sensor provides a 1 V to 7 V analog voltage output, calibrated for a 5 PSI (34.47kPa) operating pressure range. Featuring a 0.2" (5mm) dual barbless tube port and a 6-DIP module package with PC pin termination, it is designed for through-hole mounting. The device operates within a 7 V to 16 V supply voltage and offers ±2% accuracy across its -40°C to 85°C operating temperature range, with a maximum overpressure rating of 20 PSI (137.9kPa). This component is commonly utilized in board-mount applications across industrial and medical equipment.
Additional Information
Series: 180PCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 6-DIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 1 V ~ 7 V |
| Operating Pressure | 5PSI (34.47kPa) |
| Pressure Type | Differential |
| Accuracy | ±2% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 7V ~ 16V |
| Port Size | Male - 0.2"" (5mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 20PSI (137.9kPa) |
