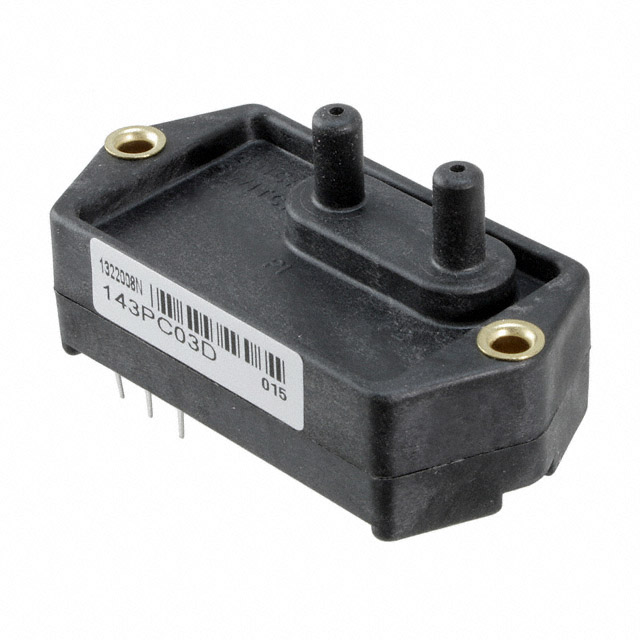

143PC03D
SENSOR 2.5PSID 0.2"" 8.5VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor ±2.5PSI (±17.24kPa) Differential Male - 0.2"" (5mm) Tube, Dual 3.5 V ~ 8.5 V 3-SIP Module
Additional Information
Series: 140PCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 3-SIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 3.5 V ~ 8.5 V |
| Operating Pressure | ±2.5PSI (±17.24kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.75% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 7V ~ 16V |
| Port Size | Male - 0.2"" (5mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | ±20PSI (±137.9kPa) |
Request a Quote
