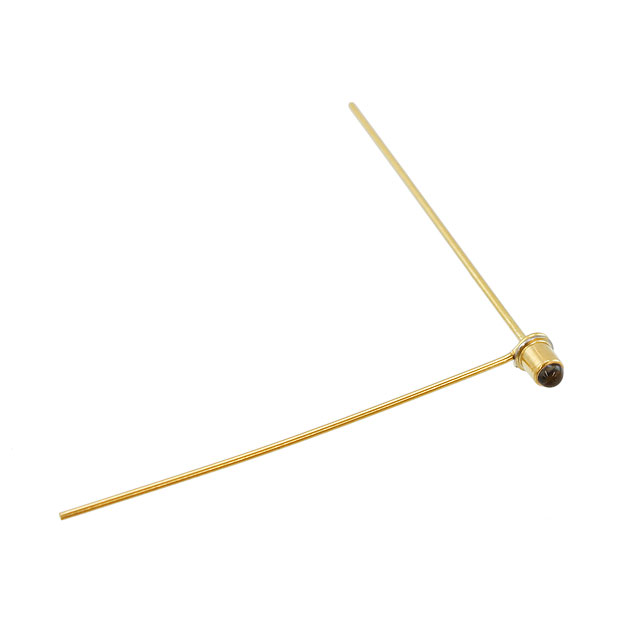

SD1410-003L
SENSOR PHOTO 880NM TOP VIEW COAXManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Phototransistors
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions SD1410-003L is a top-view phototransistor featuring an 880nm spectral response. This component is housed in a coaxial, metal can package suitable for through-hole mounting. Key electrical specifications include a maximum collector-emitter breakdown voltage of 15V and a maximum power dissipation of 75mW. The dark current (Id) is rated at a maximum of 250 nA. With an operating temperature range of -55°C to 125°C, this device is designed for robust performance in demanding environments. The viewing angle is 24°. This phototransistor is commonly utilized in industrial automation, medical equipment, and optical sensing applications.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Coaxial, Metal Can |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Operating Temperature | -55°C ~ 125°C |
| Viewing Angle | 24° |
| Current - Dark (Id) (Max) | 250 nA |
| Voltage - Collector Emitter Breakdown (Max) | 15 V |
| Power - Max | 75 mW |
