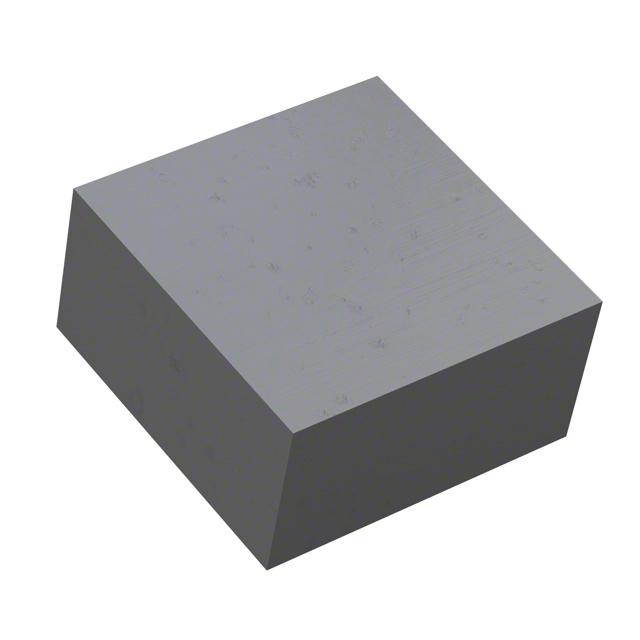

103MG5
MAGNET 0.078"" SQ X 0.040"" H SQUManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Multi Purpose Magnets
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions MG Series 103MG5 is a rare earth magnet with a square profile measuring 0.078 inches (1.98mm) per side by 0.040 inches (1.02mm) in height. This axially magnetized component exhibits a Gauss strength of 1110G at 0.01 inches and is rated for operation up to 200°C (TA). The 103MG5 is packaged in tubes, making it suitable for automated assembly processes. Its precise dimensions and magnetic characteristics are leveraged in various industrial applications, including sensor actuation, precision positioning systems, and general magnetic assembly within the automotive and industrial automation sectors.
Additional Information
Series: MGRoHS Status: Request inventory verificationManufacturer Lead Time: 24 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Material | Rare Earth |
| Shape | Square |
| Operating Temperature | 200°C (TA) |
| Size | 0.078"" Sq x 0.040"" H (1.98mm x 1.02mm) |
| Gauss Strength | 1110G @ 0.01"" |
| Finish | - |
| Magnetization | Axial |
| Grade | - |
