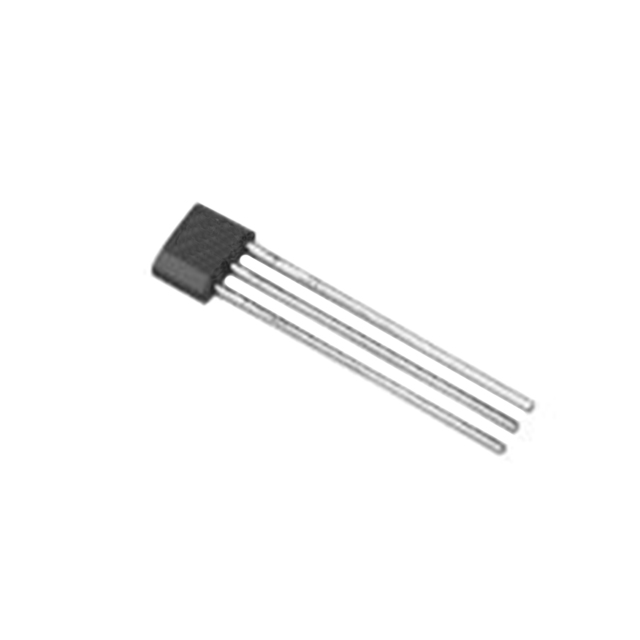

SS496B-T2
SENSOR HALL ANALOG RADIAL LEADManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Linear, Compass (ICs)
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions SS490 Series SS496B-T2 is a single-axis, temperature-compensated analog Hall effect sensor with radial leads. This device offers a linear voltage output proportional to the magnetic field intensity over its ±84mT sensing range. Designed for robust operation, it features a wide operating temperature range of -40°C to 150°C and is supplied in a 3-SIP package suitable for through-hole mounting. The SS496B-T2 operates from a 4.5V to 10.5V supply and has a maximum quiescent current of 8.7mA, with a maximum output current of 10mA. This component is utilized in applications requiring precise magnetic field detection, including position sensing, current sensing, and motor control systems across various industrial and automotive sectors. It is provided in cut tape packaging.
Additional Information
Series: SS490RoHS Status: Request inventory verificationManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Cut Tape (CT) |
| Package / Case | 3-SIP |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Axis | Single |
| Operating Temperature | -40°C ~ 150°C |
| Voltage - Supply | 4.5V ~ 10.5V |
| Bandwidth | - |
| Technology | Hall Effect |
| Resolution | - |
| Sensing Range | ±84mT |
| Current - Output (Max) | 10mA |
| Current - Supply (Max) | 8.7mA |
| Supplier Device Package | Radial Lead |
Request a Quote
Clients Also Buy
SS495A
SENSOR HALL ANALOG RADIAL LEAD

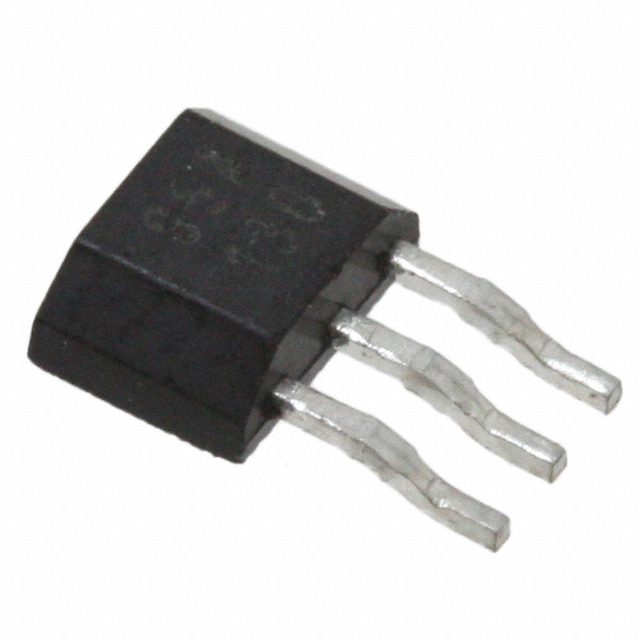

SS495A-S
