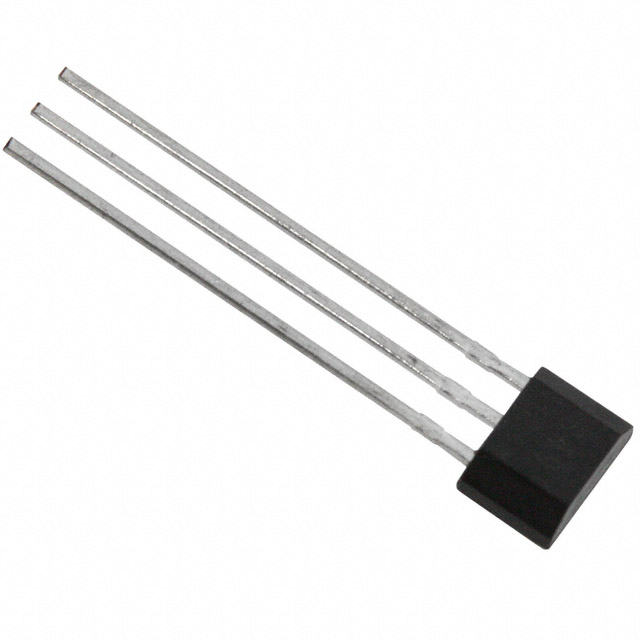

SS49
SENSOR HALL EFFECT ANALOG 3SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Linear, Compass (ICs)
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions SS49 Series Hall Effect Sensor. This single-axis analog voltage output sensor, packaged in a 3-SIP configuration, is designed for precise magnetic field detection. Operating within a supply voltage range of 4V to 10V, it offers a typical supply current of 4mA and a maximum output current of 20mA. The SS49 is suitable for through-hole mounting and operates reliably across an extended temperature range of -40°C to 100°C. This component finds application in various industries, including automotive, industrial automation, and consumer electronics, for tasks requiring accurate linear position sensing and current monitoring.
Additional Information
Series: SS49RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 3-SIP |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Axis | Single |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - Supply | 4V ~ 10V |
| Bandwidth | - |
| Technology | Hall Effect |
| Resolution | - |
| Sensing Range | - |
| Current - Output (Max) | 20mA |
| Current - Supply (Max) | 4mA (Typ) |
| Supplier Device Package | - |
