SEP8736-003

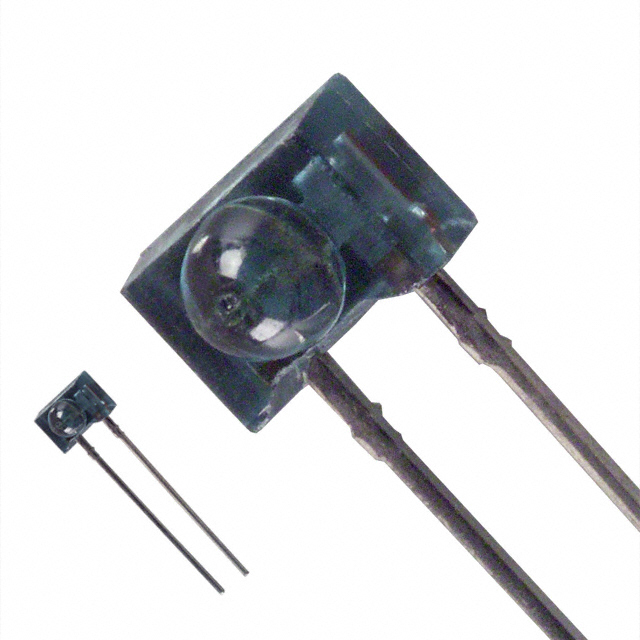

EMITTER IR 880NM 50MA RADIALManufacturer: Honeywell Sensing and Productivity Solutions
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions SEP8236-003 is an 880nm infrared (IR) emitter designed for through-hole mounting. This radial package component features a typical forward voltage of 1.7V and a maximum DC forward current of 50mA. At 20mA, it delivers a minimum radiant intensity of 1.7mW/cm². The SEP8236-003 operates within an ambient temperature range of -40°C to 85°C and has a narrow 10° viewing angle. This component is suitable for applications in industrial automation, security systems, and optical sensing.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Side View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Viewing Angle | 10° |
| Current - DC Forward (If) (Max) | 50mA |
| Radiant Intensity (Ie) Min @ If | 1.7mW/cm² @ 20mA |
