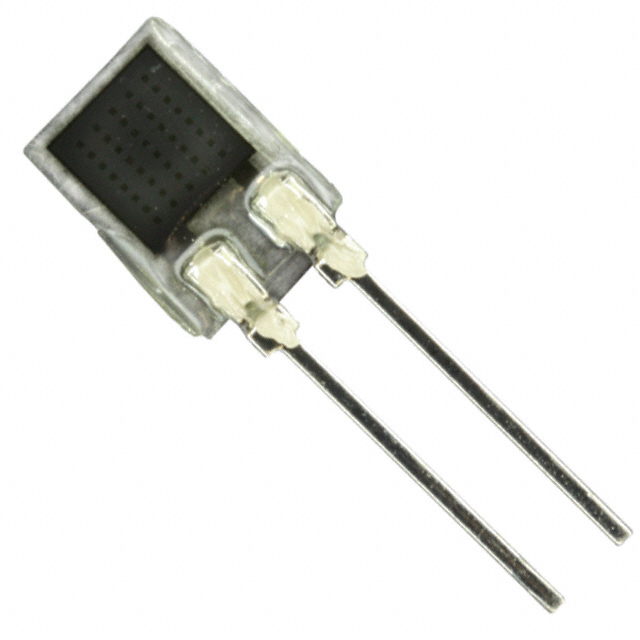

HCH-1000-001
SENSOR HUMIDITY CAPAC 2% 2SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Humidity, Moisture Sensors
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions HCH-1000-001 is a capacitance-based humidity sensor with a ±2% RH accuracy over a 0 to 100% RH range. This component, packaged in a 2-SIP module for through-hole mounting, offers a typical output of 330pF at 55% RH and a sensitivity of 600nF/%RH. Its response time is rated at 15 seconds. The HCH-1000-001 is suitable for applications requiring precise environmental monitoring, including HVAC systems, industrial process control, and medical equipment. It operates within a temperature range of -40°C to 120°C.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 2-SIP Module |
| Output Type | Capacitance |
| Sensitivity | 600nF/%RH |
| Mounting Type | Through Hole |
| Output | 330pF @ 55%RH |
| Accuracy | ±2% RH |
| Operating Temperature | -40°C ~ 120°C |
| Voltage - Supply | - |
| Sensor Type | Humidity |
| Humidity Range | 0 ~ 100% RH |
| Supplier Device Package | - |
| Response Time | 15 s |
