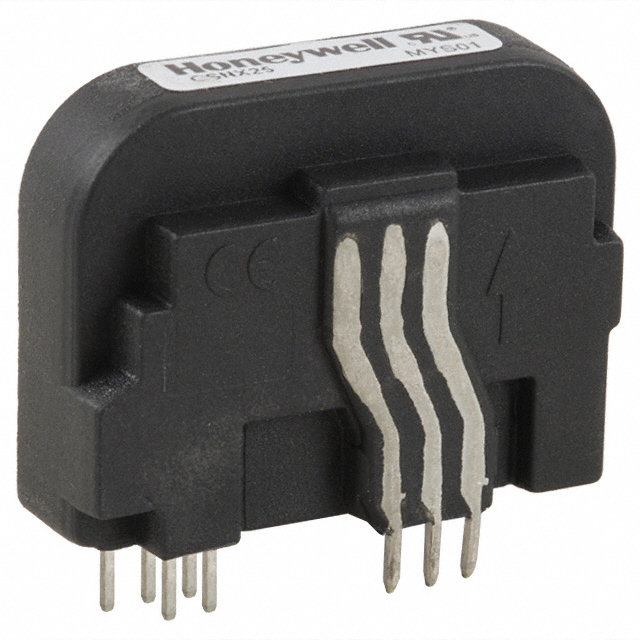

CSNX25
SENSOR CURRENT MR 56A AC/DCManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Current Sensors
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions CSN series CSNX25 is a magnetoresistive, open-loop current sensor designed for accurate AC/DC current measurement. This module features a single pass-through design for efficient integration into systems, capable of sensing up to 56A. The sensor provides a ratiometric current output, offering high precision with an accuracy of ±0.24%. Operating bidirectionally, it is suitable for applications requiring precise current monitoring in industrial automation, power supplies, and motor control systems. The device operates with a supply voltage range of 4.75V to 5.25V and a maximum supply current of 12mA. Its through-hole mounting type and operating temperature range of -40°C to 85°C ensure robust performance in demanding environments. The rapid response time of 0.2µs makes it ideal for dynamic current sensing applications.
Additional Information
Series: CSNRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Current |
| Frequency | - |
| Accuracy | ±0.24% |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | 0.2µs |
| Sensor Type | Magnetoresistive, Open Loop |
| Linearity | - |
| For Measuring | AC/DC |
| Current - Supply (Max) | 12mA |
| Current - Sensing | 56A |
| Supplier Device Package | - |
| Number of Channels | 1 |
