CSNV500M-156
CSNV500 SERIES HALL-BASED CLOSEDManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Current Sensors
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions CSNV500 Series Hall Effect Closed Loop Current Sensor, part number CSNV500M-156. This bidirectional, single pass-through module is designed for accurate AC/DC current sensing up to 500A. Featuring a ±0.5% accuracy and ±0.1% linearity, it utilizes a Hall Effect principle operating in a closed-loop configuration. The module requires a supply voltage of 7V to 18V with a maximum supply current of 250mA. Its output is delivered via CAN Bus, facilitating integration into various systems. The CSNV500M-156 is chassis mounted and operates within an ambient temperature range of -40°C to 85°C. This component is commonly employed in industrial automation, power systems, and electric vehicle applications.
Additional Information
Series: CSNV500RoHS Status: ROHS3 CompliantManufacturer Lead Time: 51 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Chassis Mount |
| Output | CAN Bus |
| Frequency | - |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 7V ~ 18V |
| Response Time | - |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 250mA |
| Current - Sensing | 500A |
| Supplier Device Package | - |
| Grade | - |
| Number of Channels | 1 |
| Qualification | - |
Request a Quote
Clients Also Buy

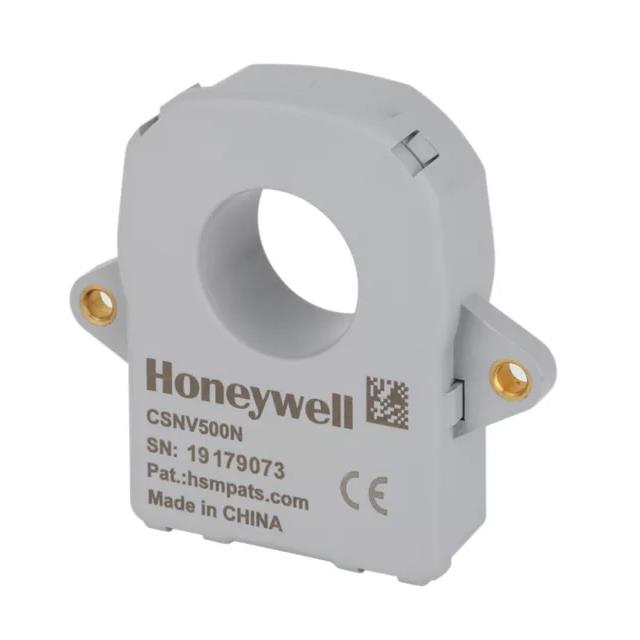

CSNV500M-124
