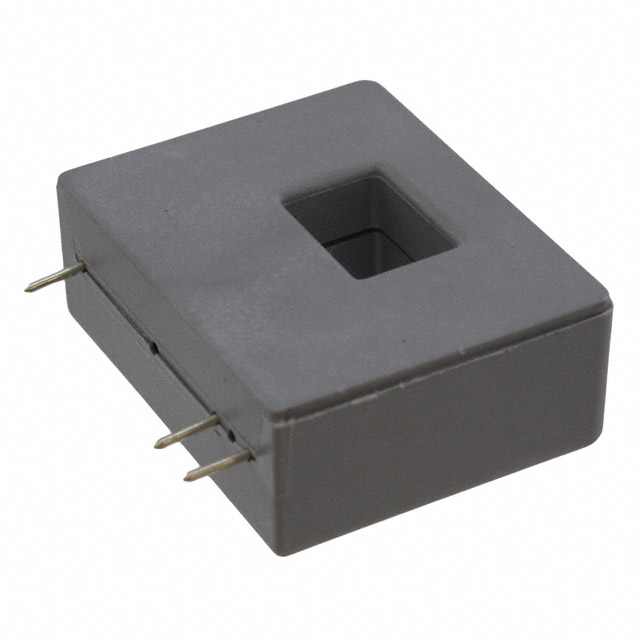

CSNP661
SENSOR CURRENT HALL 90A AC/DCManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Current Sensors
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions CSNP661 is a closed-loop Hall effect current sensor from the CSN series, designed for precise bidirectional AC/DC current measurement up to 90A. This module features single-pass-through mounting and offers a ratiometric current output with ±0.5% accuracy. Operating within a ±12V to ±15V supply range and consuming a maximum of 10mA, it boasts a rapid 0.5µs response time. The CSNP661 is engineered for demanding applications in industrial automation, power monitoring, and electric vehicle systems where robust and accurate current sensing is critical. Its through-hole mounting facilitates integration into various circuit designs.
Additional Information
Series: CSNRoHS Status: Request inventory verificationManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Current |
| Frequency | - |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | ±12V ~ 15V |
| Response Time | 0.5µs |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | - |
| For Measuring | AC/DC |
| Current - Supply (Max) | 10mA |
| Current - Sensing | 90A |
| Supplier Device Package | - |
| Number of Channels | 1 |
