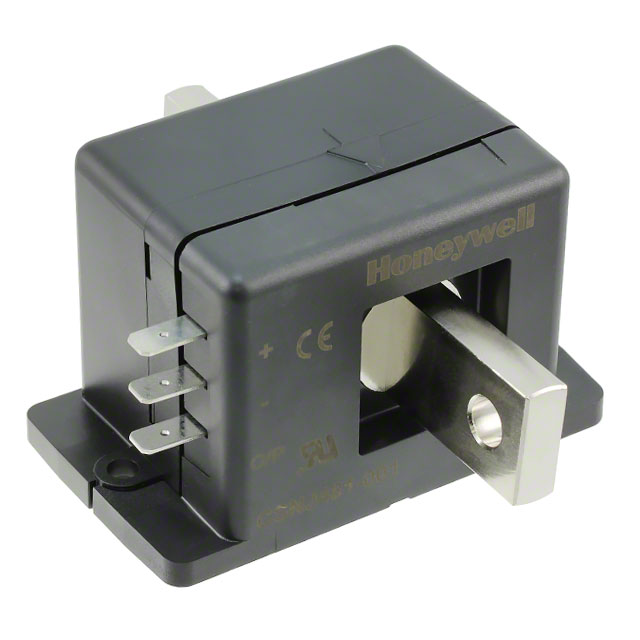

CSNJ481-001
SENSOR CURRENT HALL 600A AC/DCManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Current Sensors
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions CSNJ481-001, a Hall Effect current sensor from the CSN series, offers a closed-loop, ratiometric output for precise AC/DC current measurement up to 600A. This bidirectional module features a single pass-through design for simplified integration, ideal for applications requiring high current monitoring. With an accuracy of ±0.5% and a response time of 0.5µs, it delivers reliable performance across a wide operating temperature range of -40°C to 85°C. The sensor operates with a supply voltage of ±12V to ±18V and a maximum supply current of 14mA. Applications include industrial automation, power monitoring, electric vehicle systems, and renewable energy infrastructure.
Additional Information
Series: CSNRoHS Status: Request inventory verificationManufacturer Lead Time: 43 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Current |
| Frequency | - |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | ±12V ~ 18V |
| Response Time | 0.5µs |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | - |
| For Measuring | AC/DC |
| Current - Supply (Max) | 14mA |
| Current - Sensing | 600A |
| Supplier Device Package | - |
| Number of Channels | 1 |
