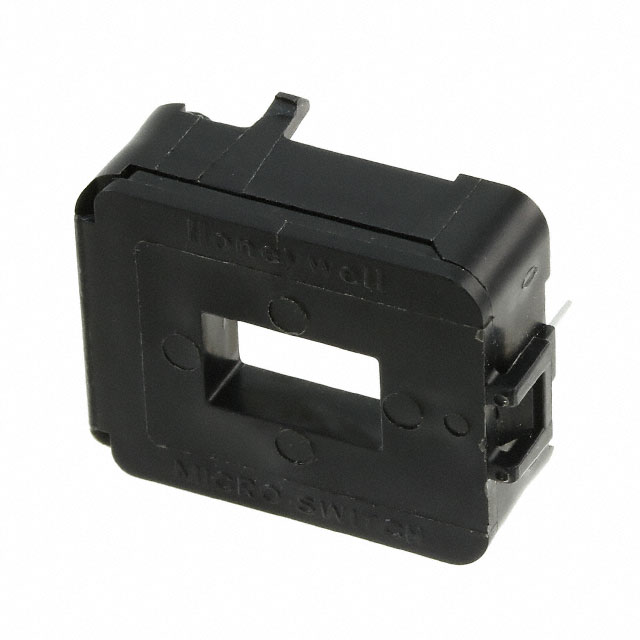

CSLH3A9
SENSOR CURRENT HALL 9A AC/DCManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Current Sensors
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions CSLH Series CSLH3A9 is an open-loop Hall effect current sensor module designed for AC/DC current sensing up to 9A. This bidirectional, single-pass-through module offers a ratiometric voltage output and operates with a supply voltage range of 4.5V to 10.5V, drawing a maximum of 30mA. Featuring a sensitivity of 282mV/N and a response time of 3µs, the CSLH3A9 is suitable for applications requiring precise current monitoring. Its through-hole mounting and operating temperature range of -25°C to 85°C make it a robust component for industrial automation, power supplies, and motor control systems.
Additional Information
Series: CSLHRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | 282mV/N |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | - |
| Accuracy | - |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply | 4.5V ~ 10.5V |
| Response Time | 3µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | - |
| For Measuring | AC/DC |
| Current - Supply (Max) | 30mA |
| Current - Sensing | 9A |
| Supplier Device Package | - |
| Number of Channels | 1 |
Request a Quote
Clients Also Buy

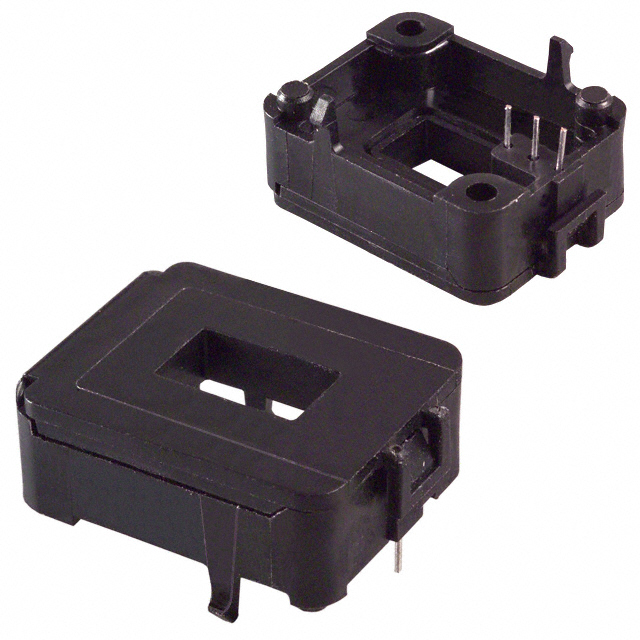

CSLH3A45
