CSLA2EN
SENSOR CURRENT HALL 950A AC/DCManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Current Sensors
Quality Control: Learn More

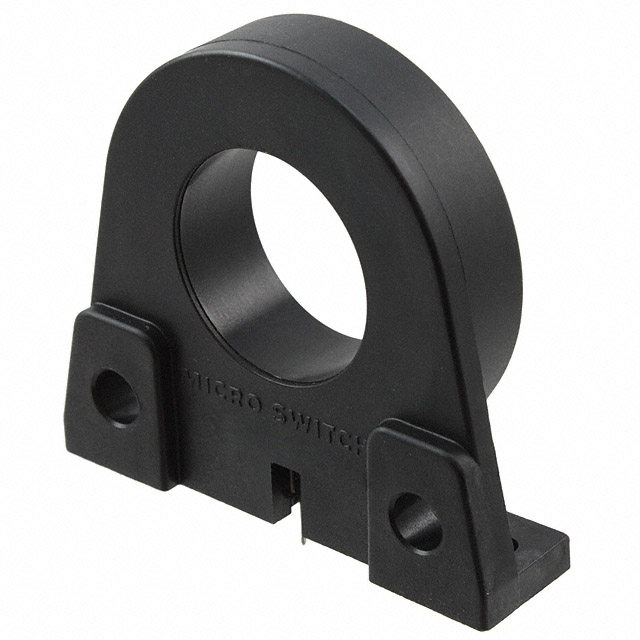

The Honeywell Sensing and Productivity Solutions CSLA2EN is a single-channel, open-loop Hall effect current sensor module designed for precise AC/DC current measurement up to 950A. This bidirectional sensor features a single-pass-through design for easy integration into power systems. Its ratiometric voltage output provides a direct relationship to the sensed current, with a typical sensitivity of 2.3mV/N. Operating within a 6V to 12V supply range and consuming a maximum of 20mA, the CSLA2EN offers a response time of 3µs. It is suitable for demanding applications across industrial automation, electric vehicle powertrains, and power supply monitoring. The module is specified for operation between -25°C and 85°C and is supplied in bulk packaging.
Additional Information
Series: CSLARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | 2.3mV/N |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | - |
| Accuracy | - |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply | 6V ~ 12V |
| Response Time | 3µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | - |
| For Measuring | AC/DC |
| Current - Supply (Max) | 20mA |
| Current - Sensing | 950A |
| Supplier Device Package | - |
| Number of Channels | 1 |
