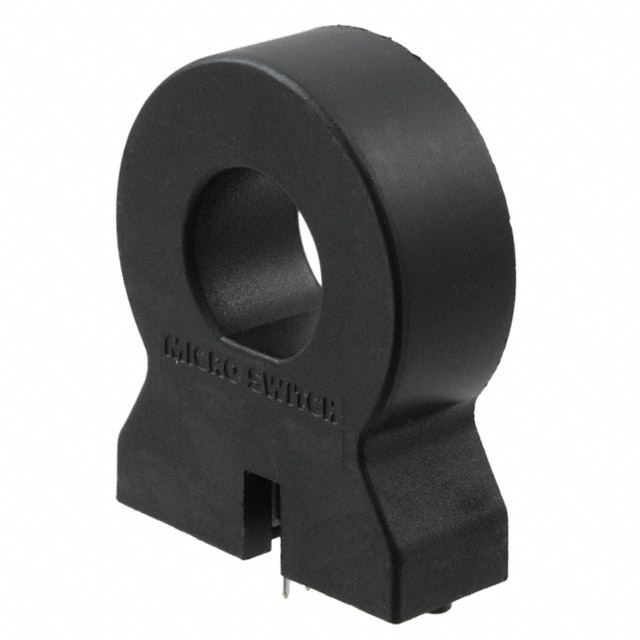

CSLA2DH
SENSOR CURRENT HALL 235A AC/DCManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Current Sensors
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions CSLA series CSLA2DH is a 235A bidirectional Hall effect current sensor module. This open-loop, single-pass-through device offers a ratiometric voltage output and is designed for AC/DC current sensing applications. The CSLA2DH operates with a supply voltage range of 6V to 12V, drawing a maximum of 20mA. It features a sensitivity of 9.8mV/N and a response time of 3µs. The through-hole mounting type and module package are suitable for various industrial automation, power supply, and electric vehicle applications. Operating temperature range is -25°C to 85°C.
Additional Information
Series: CSLARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | 9.8mV/N |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | - |
| Accuracy | - |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply | 6V ~ 12V |
| Response Time | 3µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | - |
| For Measuring | AC/DC |
| Current - Supply (Max) | 20mA |
| Current - Sensing | 235A |
| Supplier Device Package | - |
| Number of Channels | 1 |
Request a Quote
