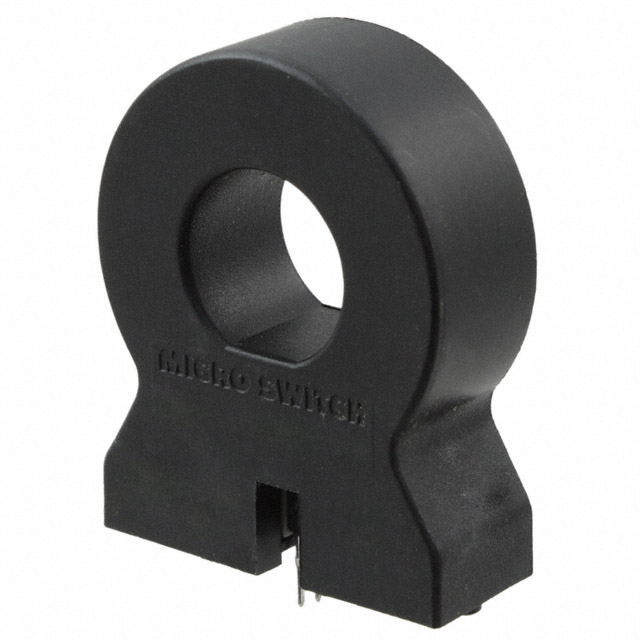

CSLA2DG
SENSOR CURRENT HALL 150A AC/DCManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Current Sensors
Quality Control: Learn More
The Honeywell Sensing and Productivity Solutions CSLA2DG is a Hall effect, open-loop current sensor designed for precise AC/DC current measurement up to 150A. This bidirectional module features a single-pass-through design, facilitating straightforward integration into power systems. Operating within a voltage supply range of 6V to 12V, it draws a maximum of 20mA. The sensor provides a ratiometric voltage output with a sensitivity of 16.2mV/N and a typical response time of 3µs. Its robust construction and operating temperature range of -25°C to 85°C make it suitable for demanding applications in industrial automation, power supplies, and electric vehicle systems. The through-hole mounting type ensures secure installation.
Additional Information
Series: CSLARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | 16.2mV/N |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | - |
| Accuracy | - |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply | 6V ~ 12V |
| Response Time | 3µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | - |
| For Measuring | AC/DC |
| Current - Supply (Max) | 20mA |
| Current - Sensing | 150A |
| Supplier Device Package | - |
| Number of Channels | 1 |
