CSHV400A-001

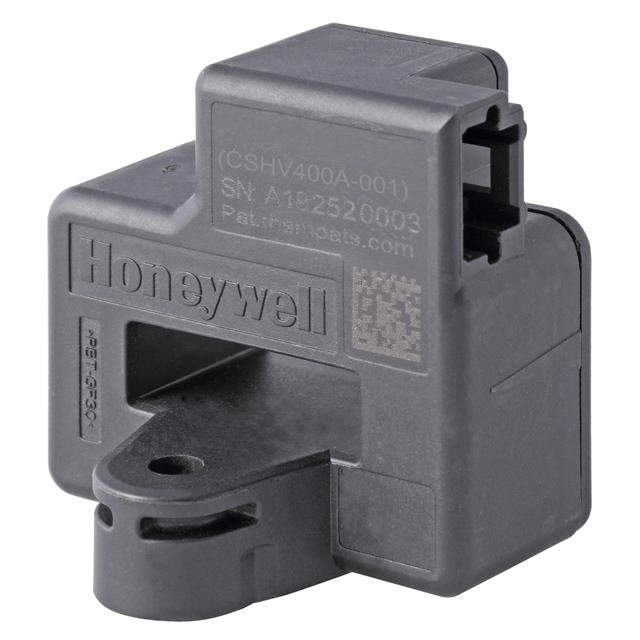

CSHV400A-001 CURRENT SENSORManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Current Sensors
Quality Control: Learn More
Current Sensor 400A 1 Channel Hall Effect, Open Loop Bidirectional Module, Single Pass Through
Additional Information
Series: CSHVRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | 5mV/A |
| Mounting Type | Chassis Mount |
| Output | Ratiometric, Voltage |
| Frequency | 45kHz |
| Accuracy | ±2% |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 6µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 16mA |
| Current - Sensing | 400A |
| Number of Channels | 1 |
Request a Quote
