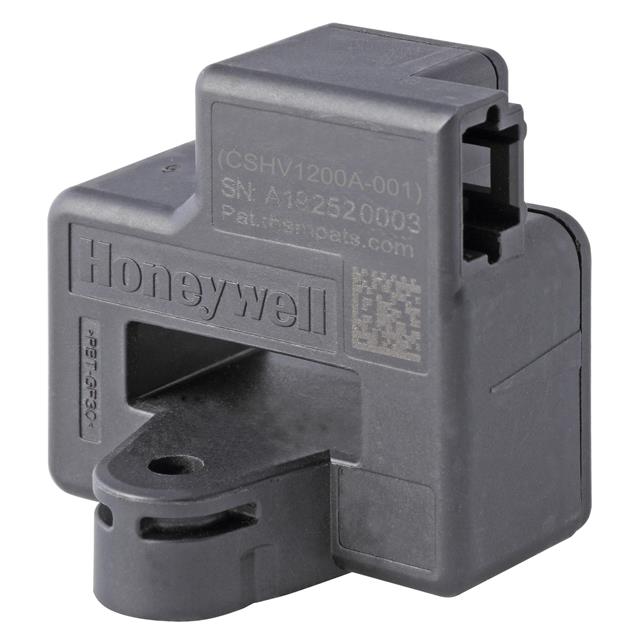

CSHV1200A-001 CURRENT SENSORManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Current Sensors
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions CSHV Series CSHV1200A-001 is an open-loop Hall effect current sensor designed for precise AC and DC current measurement up to 1200A. This bidirectional module features a single pass-through primary conductor, simplifying integration into high-current systems. The device offers ±2% accuracy and ±1% linearity, with a sensitivity of 1.67mV/A. Operating from a 4.5V to 5.5V supply with a maximum current draw of 16mA, it provides a ratiometric voltage output. The CSHV1200A-001 boasts a 6µs response time and operates across a wide temperature range of -40°C to 125°C. Its chassis mount design and module, single pass-through package are suitable for applications in industrial automation, power systems, and electric vehicle charging infrastructure.
Additional Information
Series: CSHVRoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | 1.67mV/A |
| Mounting Type | Chassis Mount |
| Output | Ratiometric, Voltage |
| Frequency | 45kHz |
| Accuracy | ±2% |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 6µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 16mA |
| Current - Sensing | 1200A |
| Number of Channels | 1 |
Request a Quote
