CSHV1100A-001

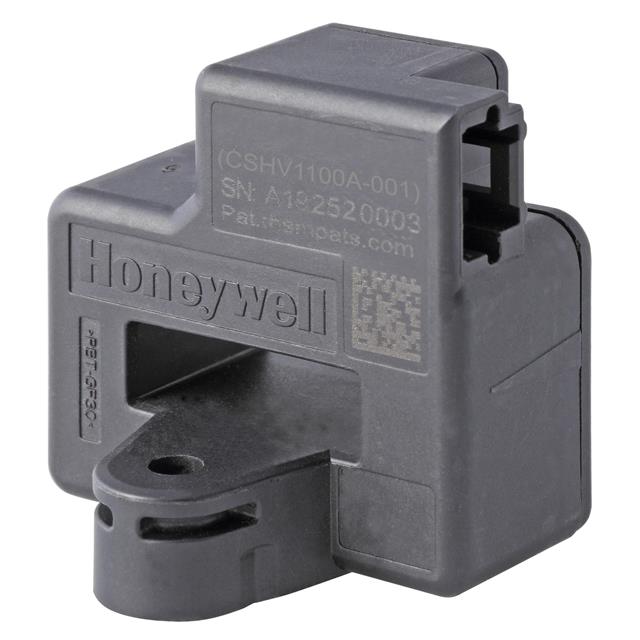

CSHV1100A-001 CURRENT SENSORManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Current Sensors
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions CSHV1100A-001 is an open-loop, Hall effect current sensor designed for precise current measurement. This bidirectional module, part of the CSHV series, offers a robust solution for sensing up to 1100A AC/DC with a high frequency response up to 45kHz. Key performance specifications include ±2% accuracy and ±1% linearity, supported by a sensitivity of 1.818mV/A. The CSHV1100A-001 features a single pass-through design for simplified integration via chassis mounting. Operating within a 4.5V to 5.5V supply range with a maximum current draw of 16mA, this sensor provides a ratiometric voltage output. Typical applications span industrial automation, power systems, and electric vehicle charging infrastructure. The component's operating temperature range is -40°C to 125°C, ensuring reliable performance across demanding environments.
Additional Information
Series: CSHVRoHS Status: ROHS3 CompliantManufacturer Lead Time: 43 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | 1.818mV/A |
| Mounting Type | Chassis Mount |
| Output | Ratiometric, Voltage |
| Frequency | 45kHz |
| Accuracy | ±2% |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 6µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 16mA |
| Current - Sensing | 1100A |
| Number of Channels | 1 |
