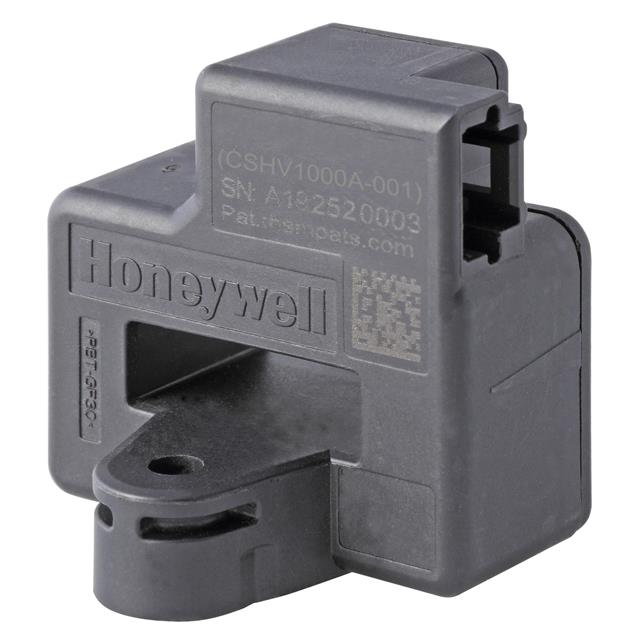

CSHV1000A-001 CURRENT SENSORManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Current Sensors
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions CSHV Series CSHV1000A-001 is an open-loop Hall Effect current sensor designed for robust industrial applications. This module features a single-pass-through design for sensing up to 1000A AC/DC current bidirectionally. With a guaranteed accuracy of ±2% and linearity of ±1%, it provides precise measurements critical for power monitoring and control systems. The sensor operates with a supply voltage range of 4.5V to 5.5V and a maximum supply current of 16mA. Its ratiometric voltage output is sensitive to 2mV/A with a response time of 6µs, enabling efficient system feedback. The CSHV1000A-001 is suitable for environments operating between -40°C and 125°C and is chassis mounted for secure integration. This component is commonly utilized in industrial automation, electric vehicle charging, and renewable energy systems.
Additional Information
Series: CSHVRoHS Status: ROHS3 CompliantManufacturer Lead Time: 43 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | 2mV/A |
| Mounting Type | Chassis Mount |
| Output | Ratiometric, Voltage |
| Frequency | 45kHz |
| Accuracy | ±2% |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 6µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 16mA |
| Current - Sensing | 1000A |
| Number of Channels | 1 |
