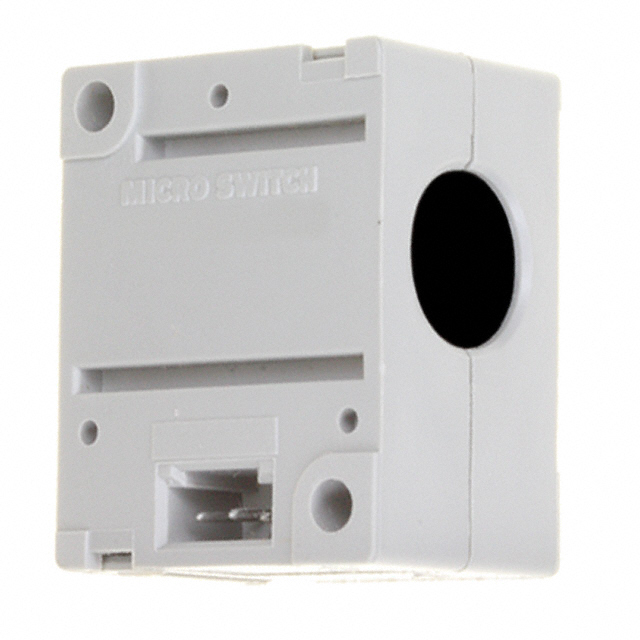

CSDA1DA
SENSOR CURRENT SWITCH 1A AC/DCManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Current Sensors
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions CSDA Series CSDA1DA is a bidirectional current switch designed for AC/DC current sensing up to 1A. This 1-channel module features a single pass-through design for simplified integration into power systems. The device operates with a supply voltage range of 6V to 16V, drawing a maximum of 12mA. Its NPN open-collector output provides a clear indication of current status. With an accuracy of ±0.5% and a response time of 100µs, the CSDA1DA is suitable for applications requiring precise and rapid current monitoring. The module is rated for operation across a temperature range of -25°C to 85°C. Industries benefiting from this component include industrial automation and power control systems.
Additional Information
Series: CSDARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Connector |
| Output | NPN |
| Frequency | - |
| Accuracy | ±0.5% |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply | 6V ~ 16V |
| Response Time | 100µs |
| Sensor Type | Current Switch |
| Linearity | - |
| For Measuring | AC/DC |
| Current - Supply (Max) | 12mA |
| Current - Sensing | 1A |
| Supplier Device Package | - |
| Number of Channels | 1 |
