CSCA0400A000B15B02
SENSOR CURRENT HALL 400A AC/DCManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Current Sensors
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions CSCA-A Series Hall Effect Current Sensor, part number CSCA0400A000B15B02, offers robust 400A AC/DC current sensing capabilities in a chassis-mount module. This open-loop, bidirectional sensor utilizes Hall effect technology to provide ratiometric voltage output with ±2% accuracy and ±1% linearity. Designed for a ±15V supply, it draws a maximum of 17mA and operates across a frequency range from DC to 50kHz. The sensor features a fast 3µs response time and an operating temperature range of -10°C to 80°C. Applications for this component include industrial automation, power monitoring, and electric vehicle systems.
Additional Information
Series: CSCA-ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Chassis Mount |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 50kHz |
| Accuracy | ±2% |
| Operating Temperature | -10°C ~ 80°C |
| Voltage - Supply | ±15V |
| Response Time | 3µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 17mA |
| Current - Sensing | 400A |
| Supplier Device Package | - |
| Number of Channels | 1 |
Request a Quote
Clients Also Buy

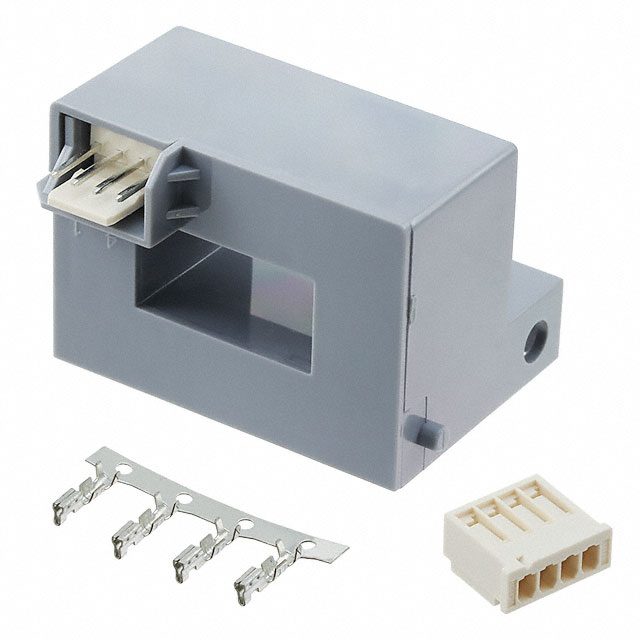

CSCA0050A000B15B01
