HRS100SWAB090

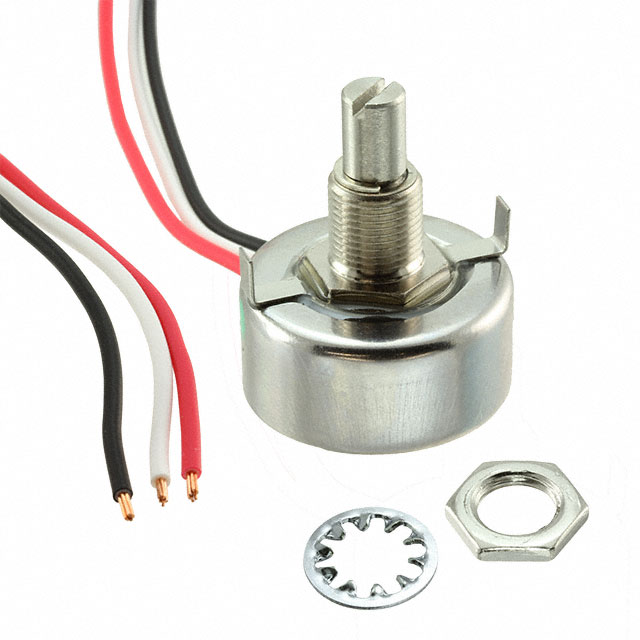

SENSOR ROTARY 90 DEG WIRE LEADSManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions HRS Series HRS100SWAB090 is a Hall effect rotary position sensor with a slotted shaft and wire lead termination. This component is designed for measuring rotary position over a 0° to 90° electrical and mechanical rotation angle. Featuring an analog voltage output, it provides a clockwise increase in signal as the shaft rotates. The sensor offers ±2% linearity and operates within a -40°C to 85°C temperature range, with a 5V supply voltage. Its surface mountable packaging and wire leads facilitate integration into various electronic systems. This sensor is suitable for applications in industrial automation, automotive systems, and general instrumentation requiring precise angular feedback.
Additional Information
Series: HRSRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, Slotted Shaft |
| Mounting Type | Surface Mount |
| Output | Analog Voltage |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Wire Leads |
| Voltage - Supply | 5V |
| Linearity | ±2% |
| Linear Range | - |
| Actuator Type | Slotted Shaft |
| Technology | Hall Effect |
| Resistance Tolerance | - |
| For Measuring | Rotary Position |
| Supplier Device Package | - |
| Rotation Angle - Electrical, Mechanical | 0° ~ 90°, 0° ~ 90° |
| Output Signal | Clockwise Increase |
| Programmable | - |
Request a Quote
Clients Also Buy

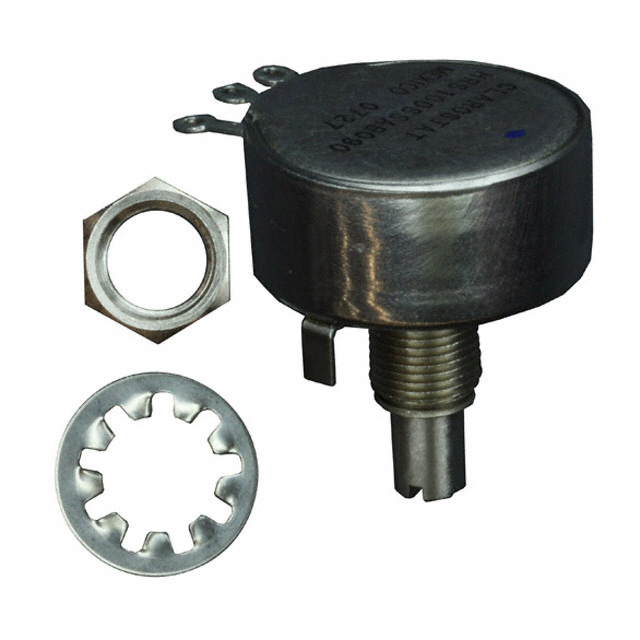

HRS100SSAB090
SENSOR ROTARY 90 DEG SOLDER LUG

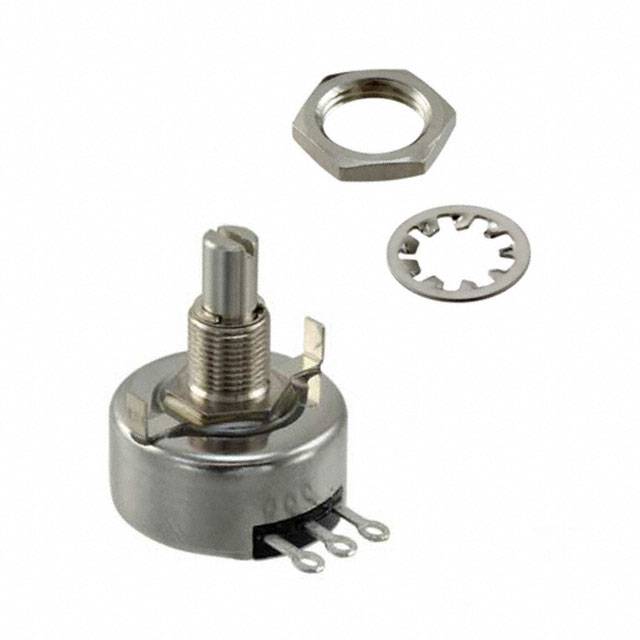

HRS100SSAB180
SENSOR ROTARY 180 DEG SOLDER LUG

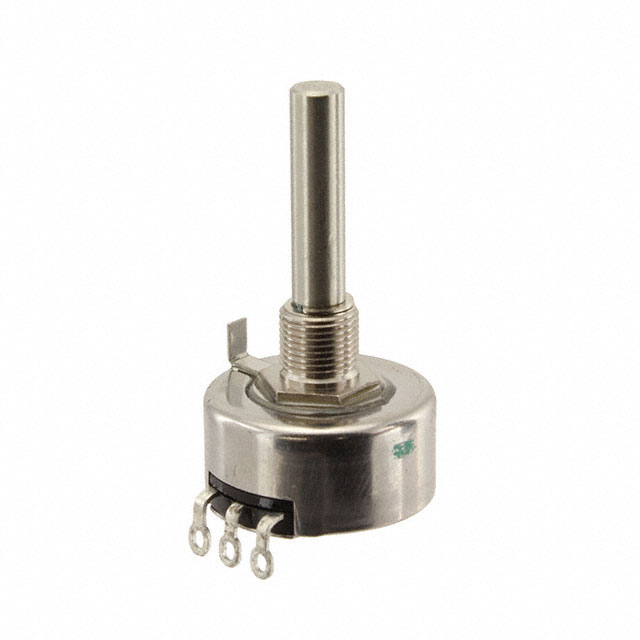

HRSRES05A090C
