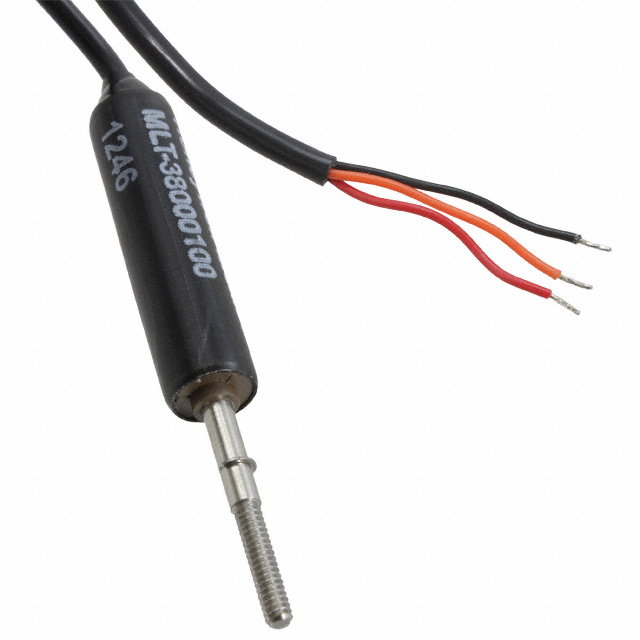

F38000100
SENSOR LINEAR 12.7MM WIRE LEADSManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions MLT series linear position sensor, part number F38000100. This resistive sensor features a 12.7mm linear range and is designed for measuring linear position with a round shaft actuator. It offers ±1% linearity and a total resistance of 750 Ohms with a ±20% tolerance. The sensor operates within a temperature range of -40°C to 80°C and is rated for up to 30V. Termination is via wire leads. This component is suitable for applications in industrial automation, robotics, and automotive systems requiring precise linear measurement.
Additional Information
Series: MltRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Cylinder, Wire Leads |
| Mounting Type | Custom |
| Output | Resistive |
| Operating Temperature | -40°C ~ 80°C |
| Termination Style | Wire Leads |
| Voltage - Supply | 30V |
| Linearity | ±1% |
| Linear Range | 0 ~ 12.70mm (0 ~ 0.50"") |
| Actuator Type | Round Shaft |
| Technology | Resistive |
| Resistance Tolerance | ±20% |
| For Measuring | Linear Position |
| Supplier Device Package | - |
| Rotation Angle - Electrical, Mechanical | - |
| Output Signal | - |
| Resistance | 750 Ohms |
| Programmable | - |
Request a Quote
Clients Also Buy

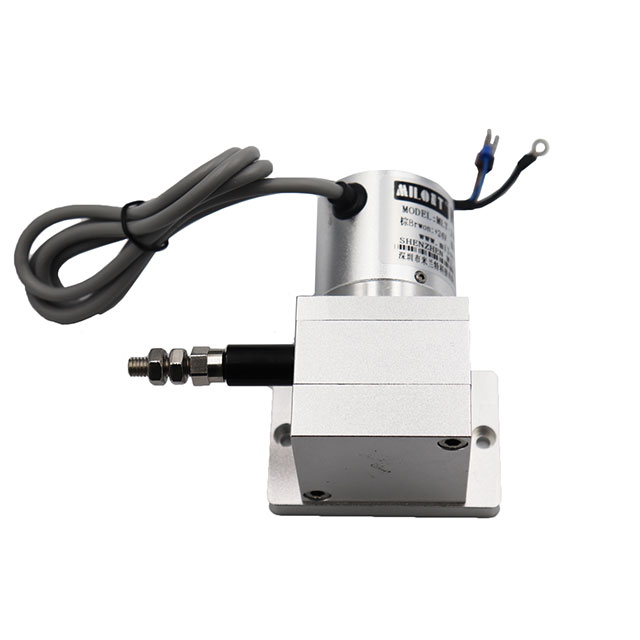

4403063885547-MLT-1000-A2
