640CS103A05PBAX
SENSOR POSITION ROTARY SHAFTManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions 640 Series resistive rotary position sensor, part number 640CS103A05PBAX. This component features a 10 kOhm resistance with a ±15% tolerance, designed for measuring rotary position with an electrical and mechanical rotation range of 0° to 180°. The output is an analog voltage with a clockwise increase signal. Linearity is specified at ±5%. This sensor utilizes resistive technology and has a wire lead termination style, packaged in a box with wire leads. It is suitable for chassis mounting and operates within an extended temperature range of -40°C to 120°C. This component is utilized in applications requiring precise angular feedback, including industrial automation and control systems.
Additional Information
Series: 640RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Box with Wire Leads |
| Mounting Type | Chassis Mount |
| Output | Analog Voltage |
| Operating Temperature | -40°C ~ 120°C |
| Termination Style | Wire Leads |
| Voltage - Supply | - |
| Linearity | ±5% |
| Linear Range | - |
| Actuator Type | Hole for Shaft |
| Technology | Resistive |
| Resistance Tolerance | ±15% |
| For Measuring | Rotary Position |
| Supplier Device Package | - |
| Rotation Angle - Electrical, Mechanical | 0° ~ 180° |
| Output Signal | Clockwise Increase |
| Resistance | 10 kOhms |
| Programmable | - |
Request a Quote
Clients Also Buy

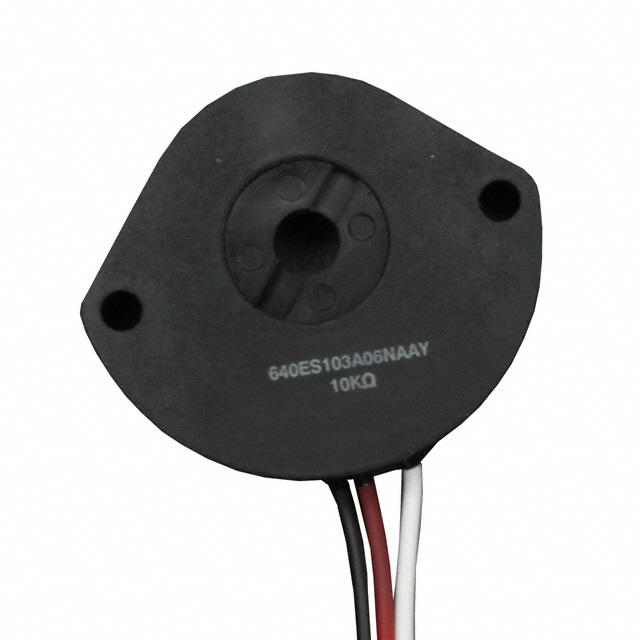

640CS103A06NAAY
SENSOR ROTARY 180 DEG WIRE LEADS
640ES103A06NAAY
SENSOR ROTARY 90 DEG WIRE LEADS

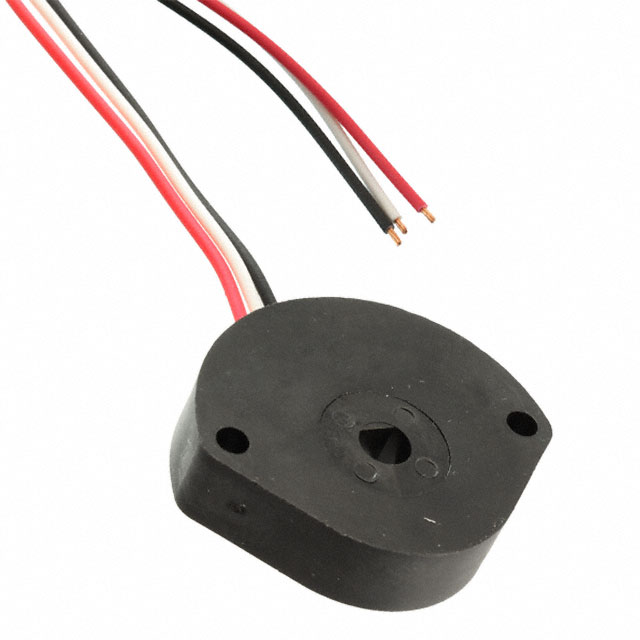

640GS103B06NBAY
