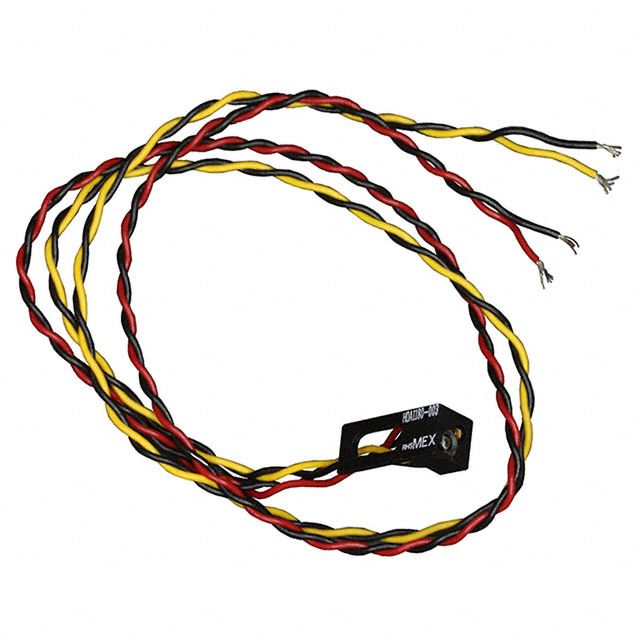

HOA1180-003
SNSR OPTO TRANS 6.35MM REFL C-MTManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Analog Output
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions HOA1180-003 is a reflective optical sensor module featuring a 6.35mm sensing distance. This pre-wired, chassis-mount module utilizes a photodarlington output. Key electrical specifications include a maximum collector current (Ic) of 30 mA and a maximum DC forward current (If) of 50 mA. The collector-emitter breakdown voltage is rated at 15 V. With a typical response time of 75µs for both rise and fall, this component is suitable for applications requiring precise object detection and position sensing. It finds use in industrial automation, consumer electronics, and automotive systems. The HOA1180-003 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Pre-Wired |
| Output Type | Photodarlington |
| Sensing Distance | 0.250"" (6.35mm) |
| Sensing Method | Reflective |
| Mounting Type | Chassis Mount |
| Response Time | 75µs, 75µs |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 15 V |
| Current - DC Forward (If) (Max) | 50 mA |
