HOA0709-001
SENSOR OPTO DARL 3.81MM REFLManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Analog Output
Quality Control: Learn More

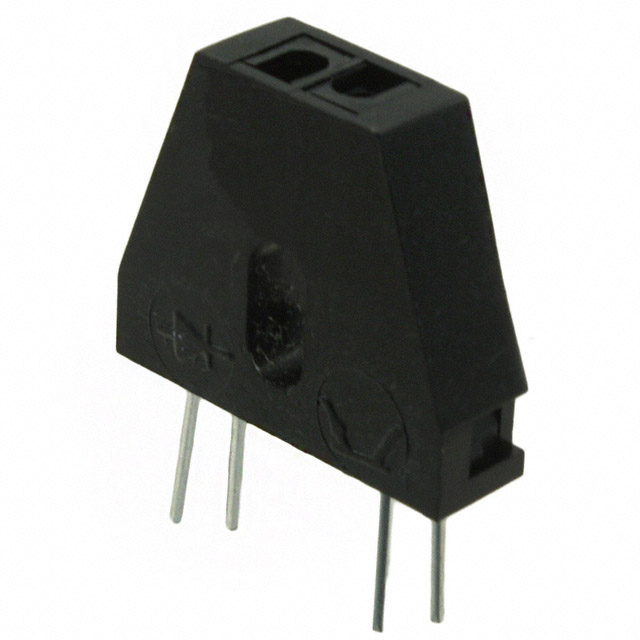

Honeywell Sensing and Productivity Solutions HOA0709-001 is a reflective optical sensor module featuring pin contacts for through-hole mounting. This component utilizes a photodarlington output type and is designed for sensing at a nominal distance of 0.15 inches (3.8mm). Key electrical specifications include a maximum collector current (Ic) of 40 mA and a maximum DC forward current (If) of 50 mA, with a collector-emitter breakdown voltage of 15 V. The sensor offers a response time of 75µs. This device is typically employed in industrial automation, object detection, and position sensing applications. Supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Pin Contacts |
| Output Type | Photodarlington |
| Sensing Distance | 0.15"" (3.8mm) |
| Sensing Method | Reflective |
| Mounting Type | Through Hole |
| Response Time | 75µs |
| Current - Collector (Ic) (Max) | 40 mA |
| Voltage - Collector Emitter Breakdown (Max) | 15 V |
| Current - DC Forward (If) (Max) | 50 mA |
