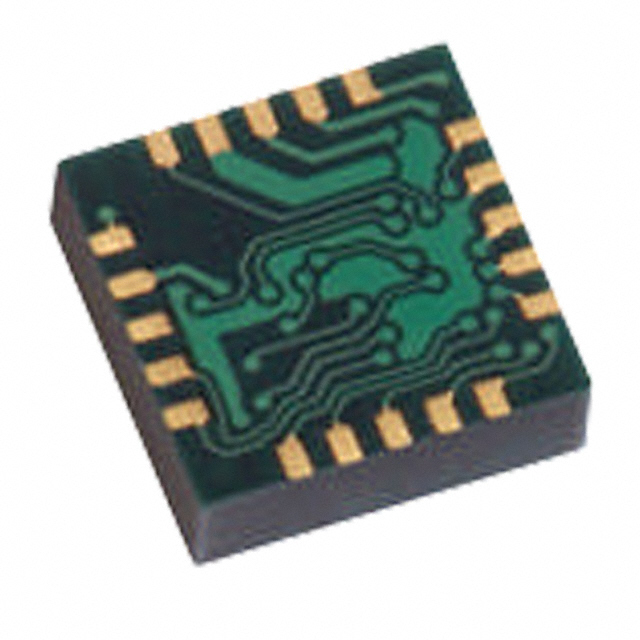

HMC5843-TR

SENSOR MR I2C 20LCC

Manufacturer: Honeywell Aerospace

Categories: Linear, Compass (ICs)

Quality Control: Learn More

Honeywell Aerospace HMC5843-TR is a three-axis magnetoresistive sensor designed for precise magnetic field measurement. This component utilizes advanced magnetoresistive technology to provide accurate X, Y, and Z axis sensing with a typical sensing range of ±0.6mT. The HMC5843-TR features an I2C output interface for seamless integration into digital systems and includes a power-saving sleep mode, drawing a maximum supply current of 80µA. Supplied in a 20-LCC package on tape and reel, this sensor is suitable for surface-mount applications. Its operational temperature range is -30°C to 85°C. This device finds application in navigation, positioning, and control systems across aerospace and industrial sectors.

Additional Information

Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
FeaturesSleep Mode
PackagingTape & Reel (TR)
Package / Case20-LCC
Output TypeI2C
Mounting TypeSurface Mount
AxisX, Y, Z
Operating Temperature-30°C ~ 85°C
Voltage - Supply2.5V ~ 3.3V
Bandwidth-
TechnologyMagnetoresistive
Resolution-
Sensing Range±0.6mT
Current - Output (Max)-
Current - Supply (Max)80µA
Supplier Device Package20-LCC
