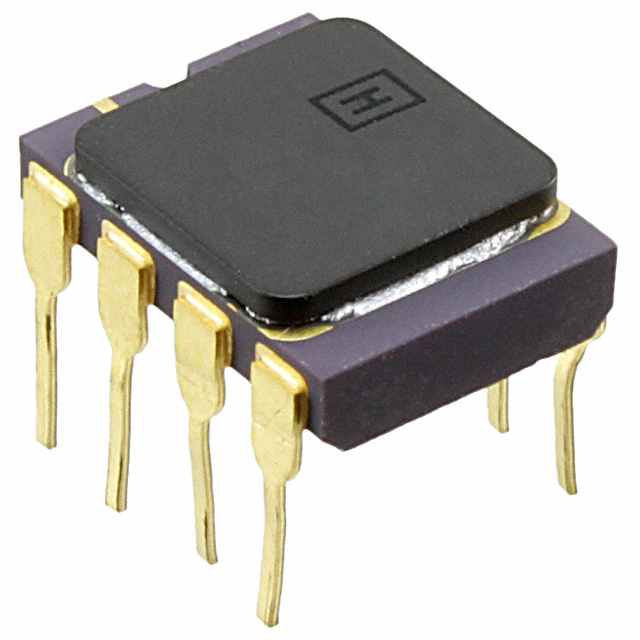

HMC1021D

SENSOR MR WHEAT BRDG 8CDIP

Manufacturer: Honeywell Aerospace

Categories: Linear, Compass (ICs)

Quality Control: Learn More

The Honeywell Aerospace HMC1021D is a single-axis magnetoresistive sensor featuring a Wheatstone bridge output. This component is designed for applications requiring precise magnetic field detection with a sensing range of ±0.6mT. The HMC1021D utilizes magnetoresistive technology and operates across a supply voltage range of 2V to 25V. It offers a bandwidth of 5MHz, making it suitable for dynamic measurement scenarios. The sensor is packaged in an 8-CDIP (0.300", 7.62mm) through-hole mount package, facilitating robust assembly. Operating across an extended temperature range of -55°C to 225°C, the HMC1021D finds application in aerospace and industrial automation systems where reliable magnetic field sensing is critical.

Additional Information

Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:
Technical Details:
Features-
PackagingBulk
Package / Case8-CDIP (0.300"", 7.62mm)
Output TypeWheatstone Bridge
Mounting TypeThrough Hole
AxisSingle
Operating Temperature-55°C ~ 225°C
Voltage - Supply2V ~ 25V
Bandwidth5MHz
TechnologyMagnetoresistive
Resolution-
Sensing Range±0.6mT
Current - Output (Max)-
Current - Supply (Max)-
Supplier Device Package8-CDIP
