MD60-19PA
CONN RCPT HDMI 19POS PNL MNT R/AManufacturer: Hirose Electric Co Ltd
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More

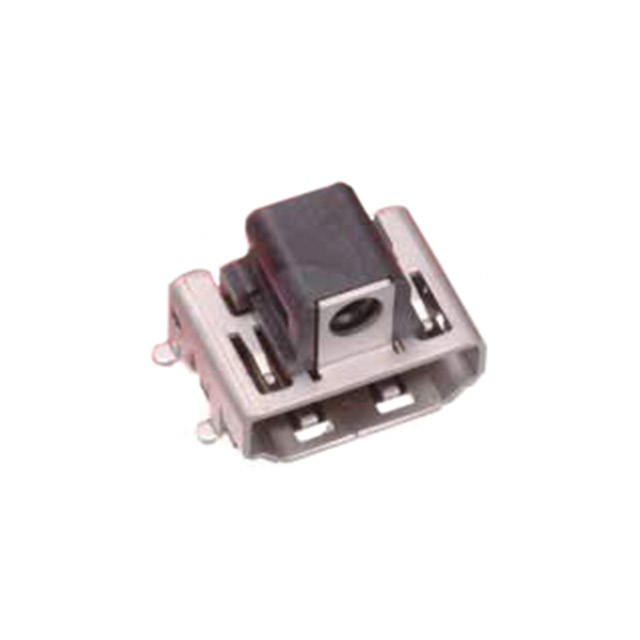

Hirose Electric Co Ltd MD Series HDMI Receptacle Connector, Part Number MD60-19PA. This 19-position, right-angle, panel-mount connector is designed for surface-mount termination. It features a shielded construction for signal integrity and includes board guide and solder retention features. The connector has a current rating of 0.5A and a voltage rating of 125VAC, with a mating cycle endurance of 10,000 cycles. Operating temperature ranges from -55°C to 85°C. This component is commonly utilized in consumer electronics, broadcast equipment, and industrial automation systems where high-definition multimedia interfaces are required. Supplied in tray packaging.
Additional Information
Series: MDRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Solder Retention |
| Packaging | Tray |
| Voltage - Rated | 125VAC |
| Number of Contacts | 19 |
| Connector Type | HDMI |
| Gender | Receptacle |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Panel Mount, Surface Mount, Right Angle |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 85°C |
| Specifications | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Flange, Horizontal |
| Mating Cycles | 10000 |
| Number of Ports | 1 |
