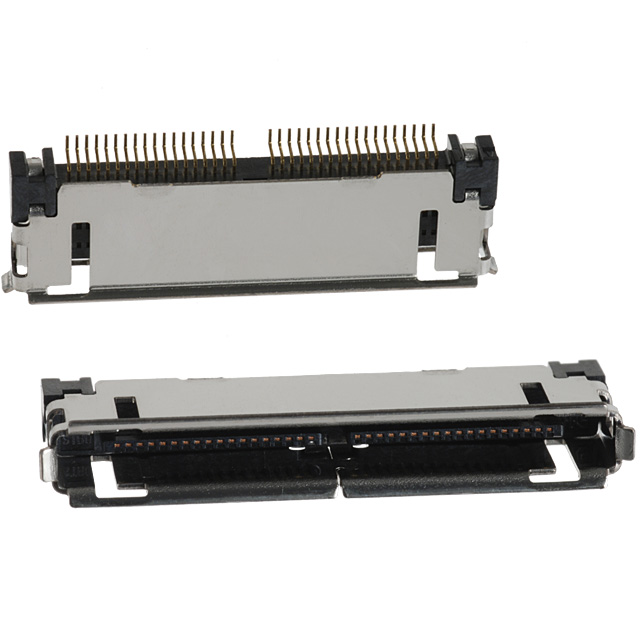

ST60-36PR(30)
CONN RCPT 36P 0.02 GOLD EDGE MNTManufacturer: Hirose Electric Co Ltd
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
36 Position Receptacle Connector 0.020"" (0.50mm) Board Edge, Surface Mount, Right Angle, Reverse Mount Gold
Additional Information
Series: STRoHS Status: Request inventory verificationManufacturer Lead Time: 16 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Board Guide, Shielded |
| Packaging | Tape & Reel (TR) |
| Connector Type | Receptacle |
| Voltage Rating | 100VAC |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Board Edge, Surface Mount, Right Angle, Reverse Mount |
| Number of Positions | 36 |
| Style | Board to Cable/Wire |
| Operating Temperature | -30°C ~ 80°C |
| Contact Type | Non-Gendered |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.020"" (0.50mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | - |
| Insulation Height | - |
| Row Spacing - Mating | - |
| Number of Rows | 1 |
