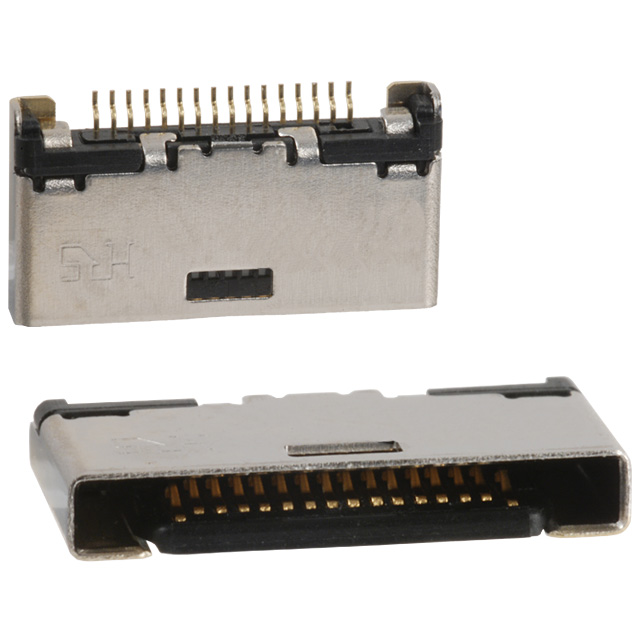

LX60-16S
CONN RCPT 16P 0.02 GOLD SMD R/AManufacturer: Hirose Electric Co Ltd
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
16 Position Receptacle Connector 0.020"" (0.50mm) Surface Mount, Right Angle Gold
Additional Information
Series: LXRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tape & Reel (TR) |
| Connector Type | Receptacle |
| Voltage Rating | 50VAC |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 16 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 70°C |
| Contact Type | Center Strip Contact |
| Fastening Type | Friction Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.020"" (0.50mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | - |
| Insulation Height | 0.079"" (2.00mm) |
| Row Spacing - Mating | - |
| Number of Rows | 1 |
