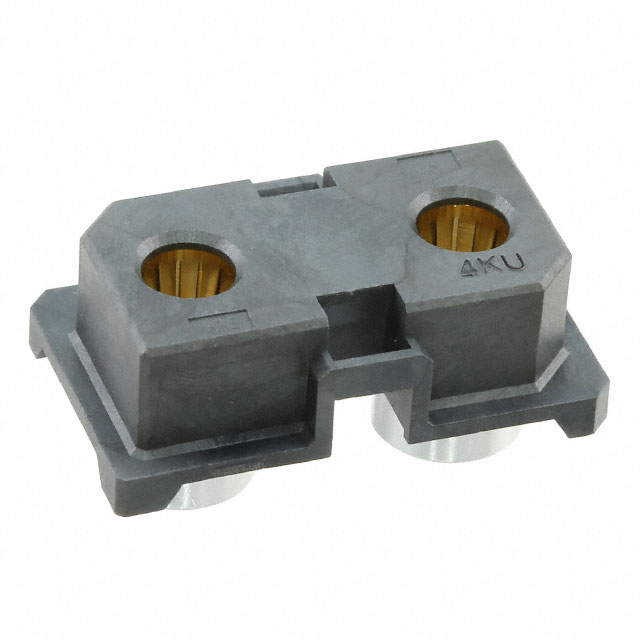

IT-PD-2S-DIR
CONN RCPT 2POS 0.472 GOLD PCBManufacturer: Hirose Electric Co Ltd
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
2 Position Receptacle Connector 0.472"" (12.00mm) Through Hole Gold
Additional Information
Series: IT-PRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Pick and Place |
| Packaging | Tape & Reel (TR) |
| Connector Type | Receptacle |
| Voltage Rating | 300V |
| Current Rating (Amps) | 60A per Contact |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Style | Board to Board |
| Operating Temperature | -55°C ~ 85°C |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 11mm ~ 44mm |
| Insulation Color | Black |
| Pitch - Mating | 0.472"" (12.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Length - Post | 0.126"" (3.20mm) |
| Insulation Height | 0.291"" (7.40mm) |
| Row Spacing - Mating | - |
| Number of Rows | 1 |
Request a Quote
Clients Also Buy

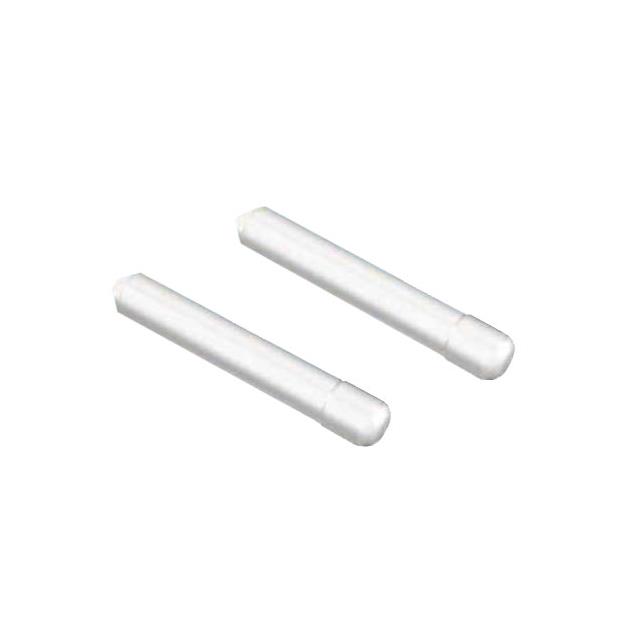

IT-PA-2P-14H(11)
CONN INTERPOSER WITHOUT HSG

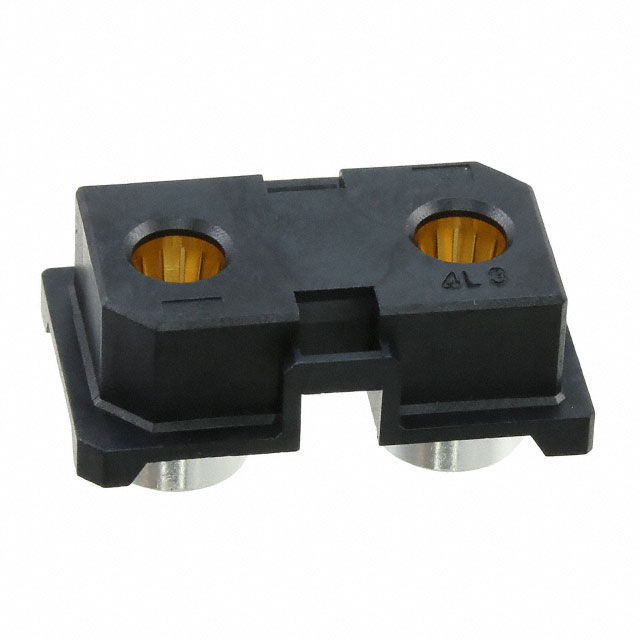

IT-PM-2S-DIR
