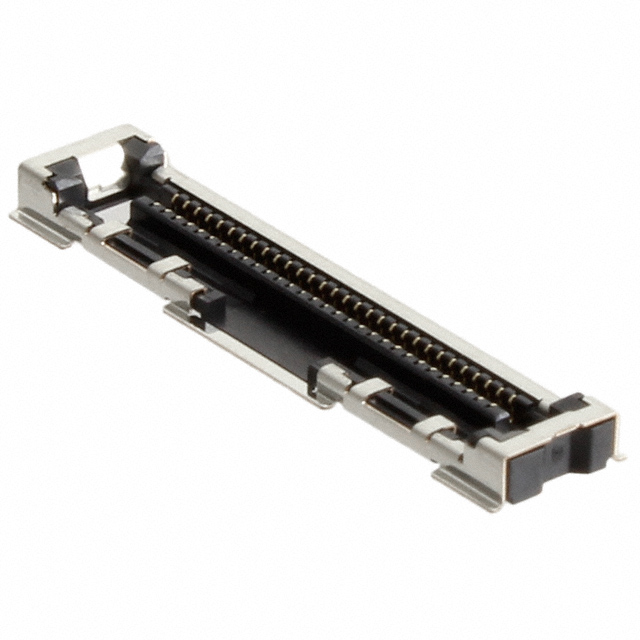

DF80-30S-0.5V(52)
CONN RCPT 30POS 0.02 GOLD SMDManufacturer: Hirose Electric Co Ltd
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
30 Position Receptacle Connector 0.020"" (0.50mm) Surface Mount Gold
Additional Information
Series: DF80RoHS Status: Request inventory verificationManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Solder Retention |
| Packaging | Tape & Reel (TR) |
| Connector Type | Receptacle |
| Voltage Rating | 50V |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Surface Mount |
| Number of Positions | 30 |
| Style | Board to Cable/Wire |
| Operating Temperature | -35°C ~ 85°C |
| Contact Type | Center Strip Contact |
| Fastening Type | Friction Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.020"" (0.50mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.97µin (0.050µm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | - |
| Insulation Height | 0.065"" (1.65mm) |
| Row Spacing - Mating | - |
| Number of Rows | 1 |
Request a Quote
Clients Also Buy

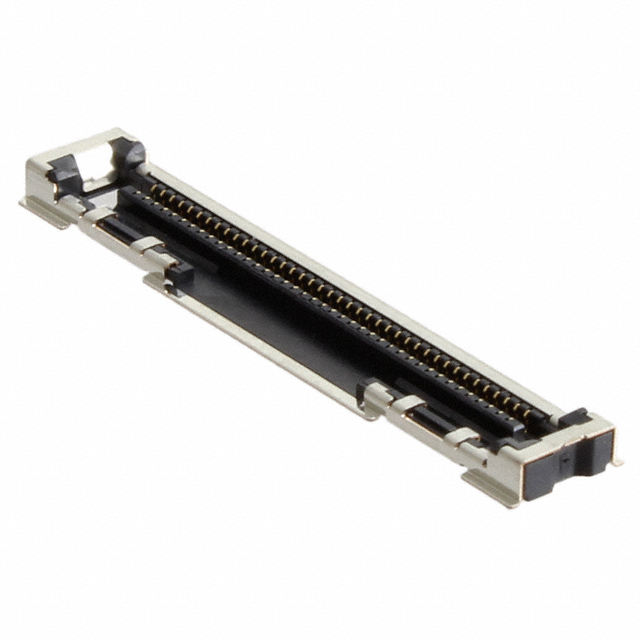

DF80-40S-0.5V(52)
