DF3-5S-2DSA(55)
CONN RCPT 5POS 0.079 GOLD PCBManufacturer: Hirose Electric Co Ltd
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
5 Position Receptacle Connector 0.079"" (2.00mm) Through Hole Gold
Additional Information
Series: DF3RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Last Time BuyPackaging: TubeDownload Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Receptacle |
| Voltage Rating | 30VAC |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole |
| Number of Positions | 5 |
| Style | Board to Board or Cable |
| Operating Temperature | -30°C ~ 85°C |
| Contact Type | Female Socket |
| Fastening Type | Friction Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 6.6mm, 7.5mm |
| Insulation Color | Black |
| Pitch - Mating | 0.079"" (2.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.118"" (3.00mm) |
| Insulation Height | 0.232"" (5.90mm) |
| Row Spacing - Mating | - |
| Number of Rows | 1 |
Request a Quote
Clients Also Buy

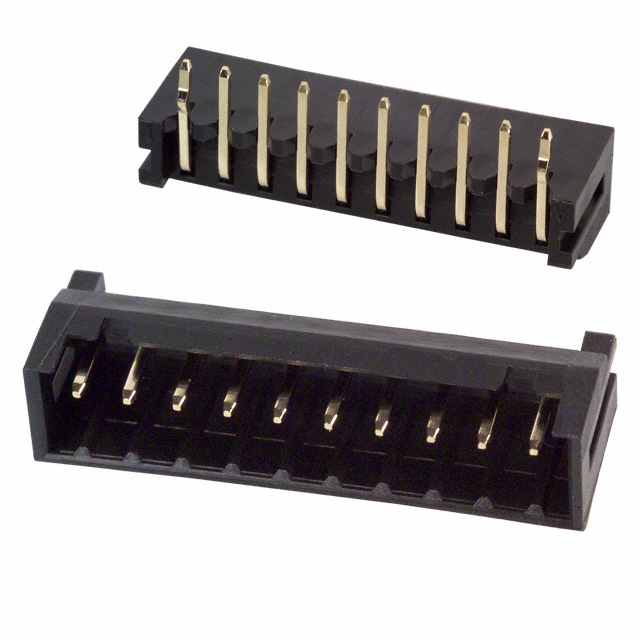

DF3-10P-2DS(01)
CONN HEADER R/A 10POS 2MM

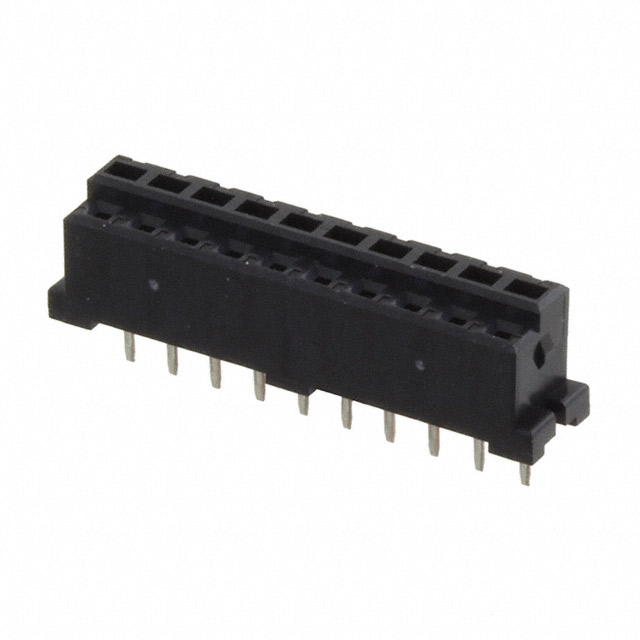

DF3-10S-2DSA(25)
CONN RCPT 10POS 0.079 TIN PCB

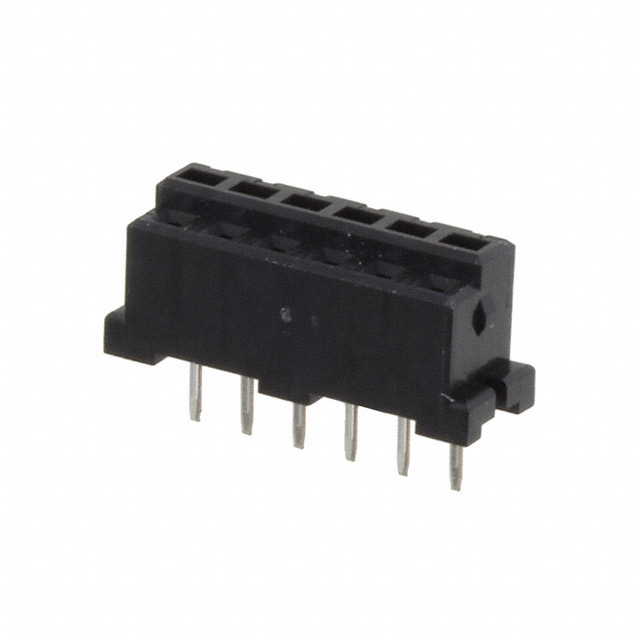

DF3-6S-2DSA(55)
