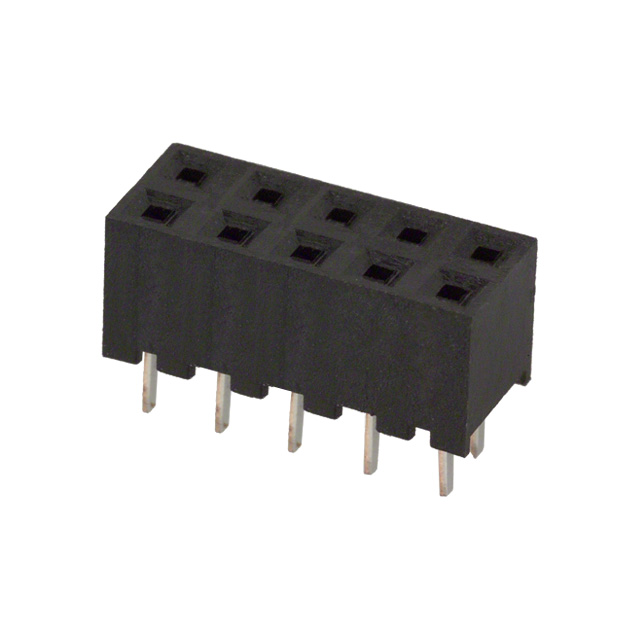

A3C-10DA-2DSC(71)
CONN RCPT 10POS 0.079 GOLD PCBManufacturer: Hirose Electric Co Ltd
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
10 Position Receptacle Connector 0.079"" (2.00mm) Through Hole Gold
Additional Information
Series: A3RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Receptacle |
| Voltage Rating | 200VAC |
| Current Rating (Amps) | 1A |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 85°C |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 5.1mm, 6mm |
| Insulation Color | Black |
| Pitch - Mating | 0.079"" (2.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.079"" (2.00mm) |
| Insulation Height | 0.165"" (4.20mm) |
| Row Spacing - Mating | 0.079"" (2.00mm) |
| Number of Rows | 2 |
Request a Quote
Clients Also Buy
A3-10PA-2SV(71)
CONN HEADER SMD 10POS 2MM
A3-10PA-2SV(97)
CONN HEADER 10POS 2MM GOLD SMD

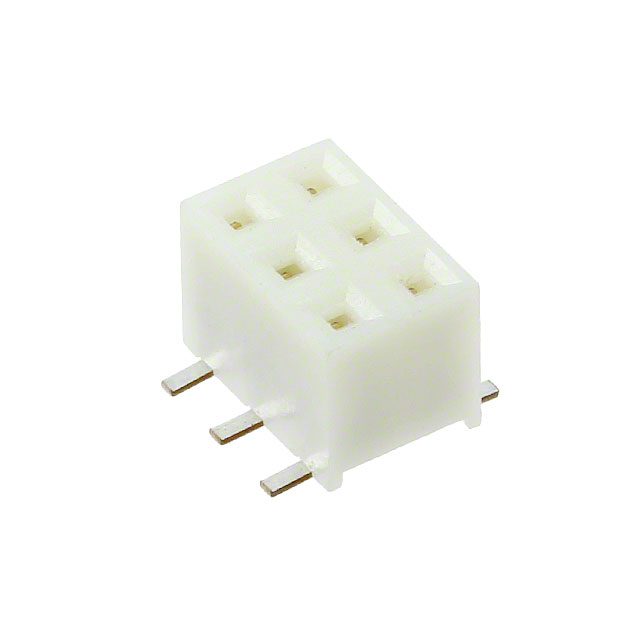

A3-6DA-2SV(71)
