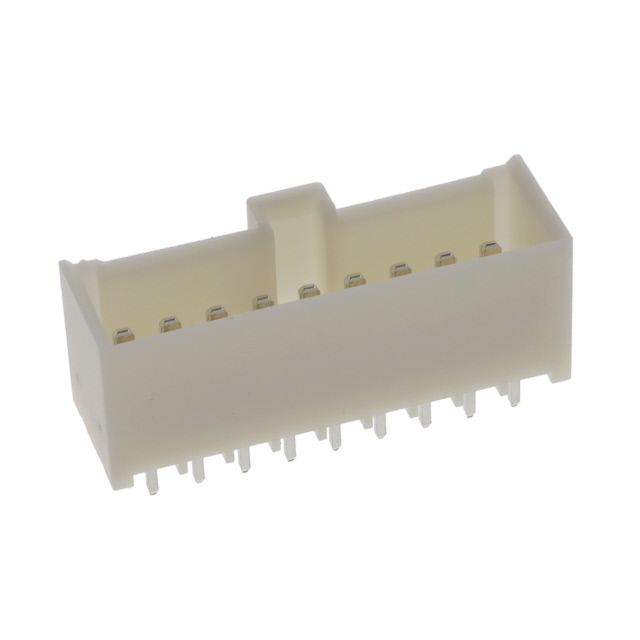

MDF6-18DP-3.5DSA(23)
CONN HEADER VERT 18POS 3.5MMManufacturer: Hirose Electric Co Ltd
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 18 position 0.138"" (3.50mm)
Additional Information
Series: MDF6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Bag |
| Connector Type | Header |
| Voltage Rating | 300VAC/DC |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -30°C ~ 85°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | White |
| Pitch - Mating | 0.138"" (3.50mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.138"" (3.50mm) |
| Insulation Height | 0.512"" (13.00mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | 0.197"" (5.00mm) |
| Contact Length - Mating | 0.220"" (5.60mm) |
Request a Quote
Clients Also Buy

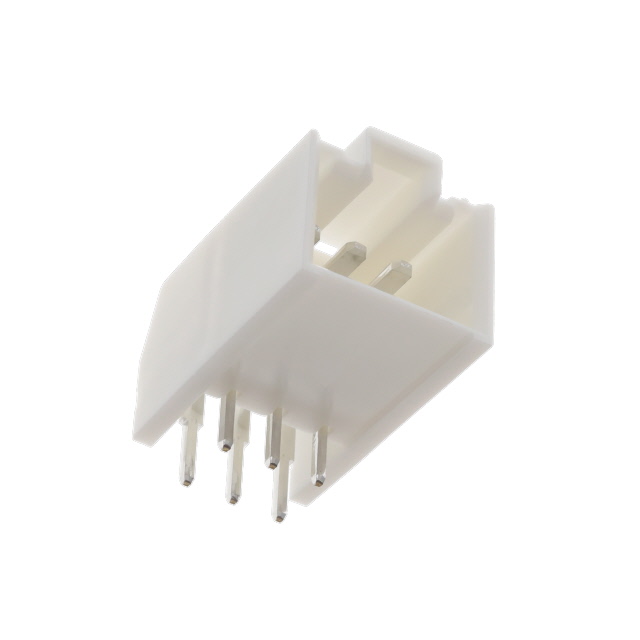

MDF6-6DP-3.5DS(23)
