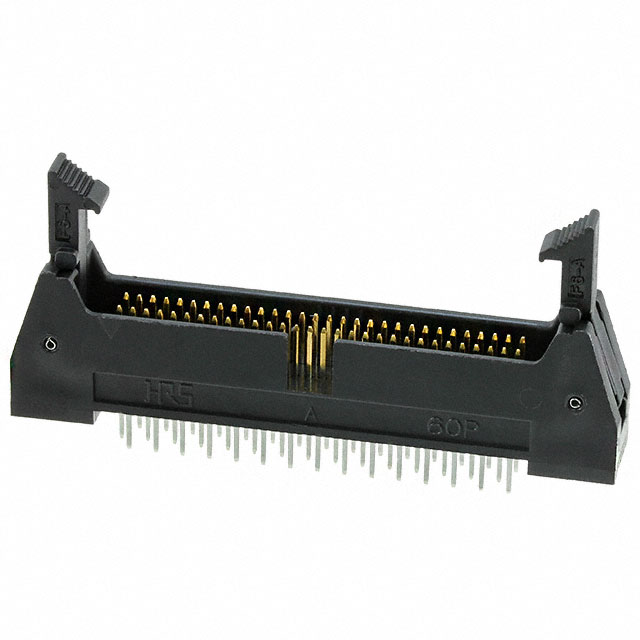

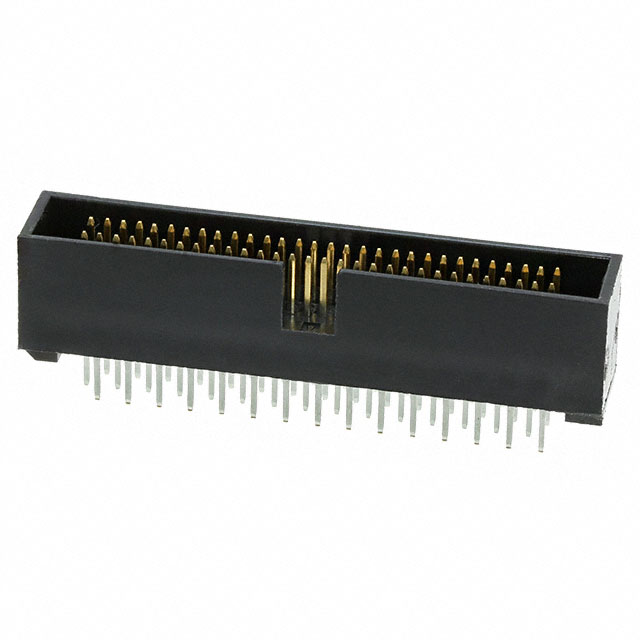

HIF6A-60PA-1.27DSA(71)
CONN HEADER VERT 60POS 1.27MMManufacturer: Hirose Electric Co Ltd
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 60 position 0.050"" (1.27mm)
Additional Information
Series: HIF6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Keying Slot |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | 300V |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Through Hole |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 85°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.050"" (1.27mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.110"" (2.79mm) |
| Insulation Height | 0.453"" (11.50mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.205"" (5.21mm) |
Request a Quote
Clients Also Buy

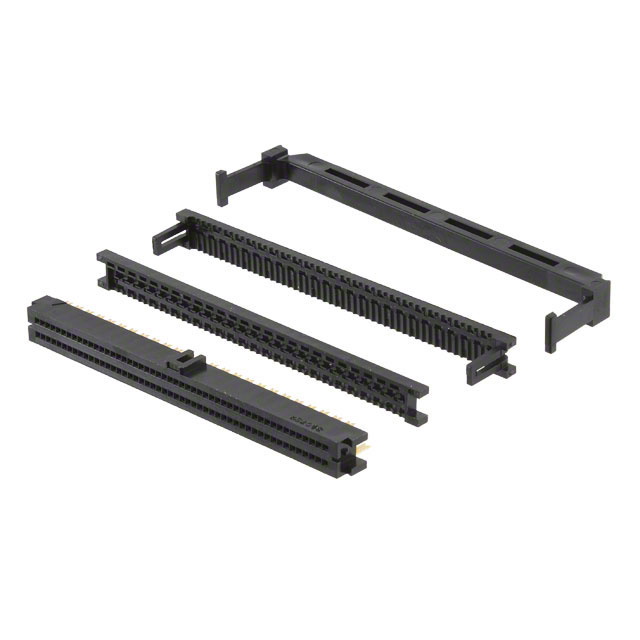

HIF6-100D-1.27R(20)
CONN RCPT 100POS IDC 28AWG GOLD

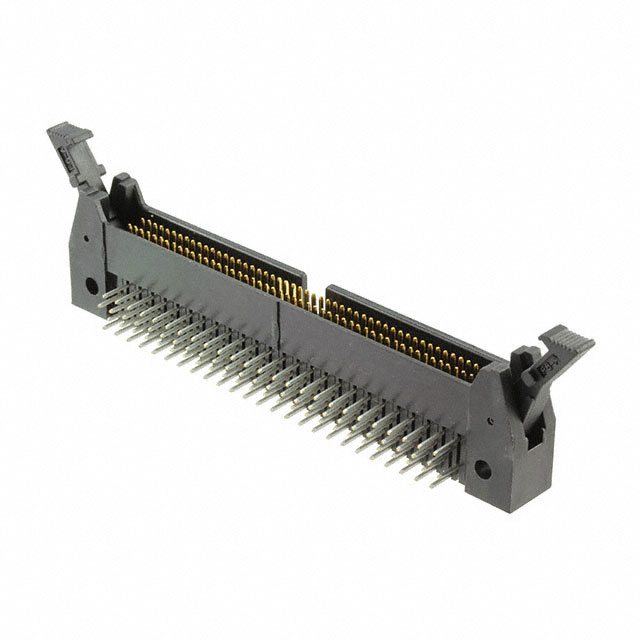

HIF6-100PA-1.27DS(71)
CONN HEADER R/A 100P 1.27MM

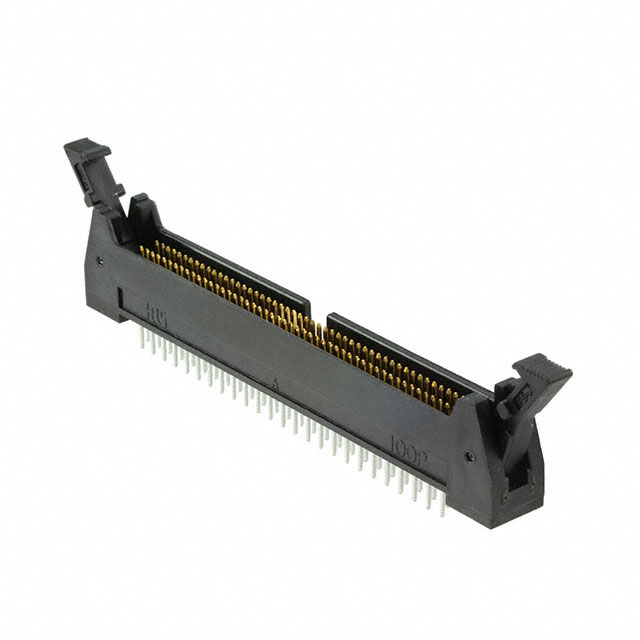

HIF6-100PA-1.27DSA(71)
