HIF3FC-14PA-2.54DS(71)
CONN HEADER R/A 14POS 2.54MMManufacturer: Hirose Electric Co Ltd
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 14 position 0.100"" (2.54mm)
Additional Information
Series: HIF3FCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Keying Slot |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | 200V |
| Current Rating (Amps) | 1A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 85°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.118"" (3.00mm) |
| Insulation Height | 0.335"" (8.51mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.236"" (6.00mm) |
Request a Quote
Clients Also Buy
A1-8PA-2.54DSA(71)
CONN HEADER VERT 8POS 2.54MM
DF11-26DP-2DSA(01)
CONN HEADER VERT 26POS 2MM

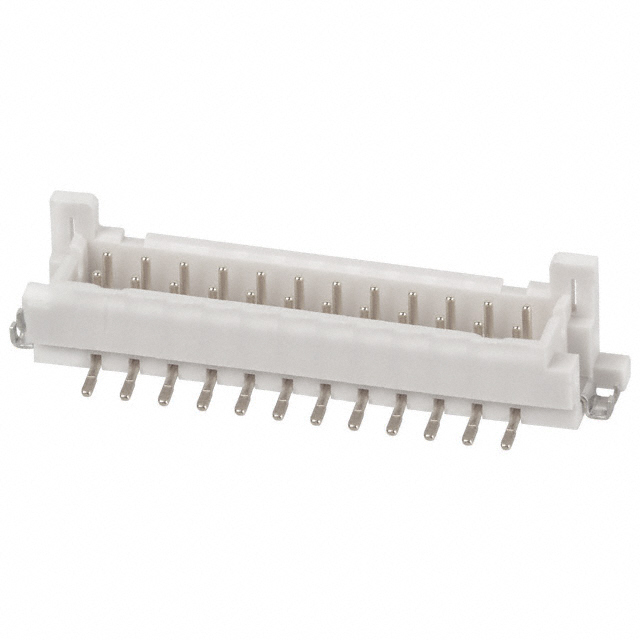

DF11GZ-24DP-2V(20)
