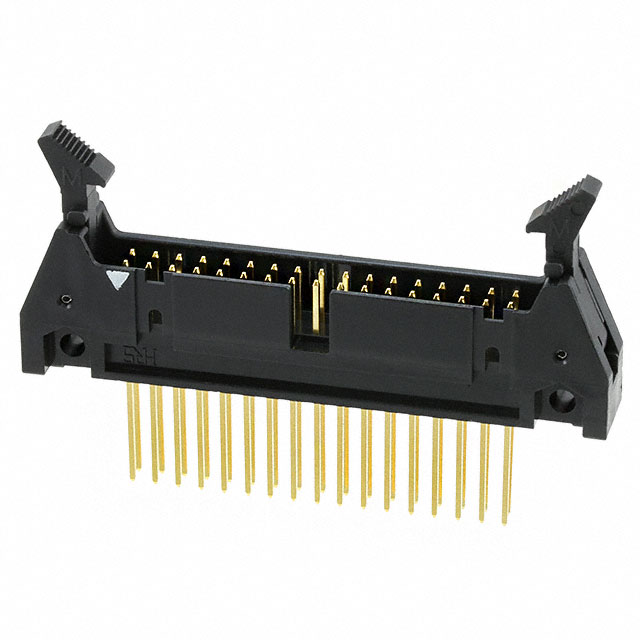

HIF3BA-34P-2.54W(88)
CONN HEADER VERT 34POS 2.54MMManufacturer: Hirose Electric Co Ltd
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 34 position 0.100"" (2.54mm)
Additional Information
Series: HIF3BRoHS Status: Request inventory verificationManufacturer Lead Time: 16 week(s)Product Status: Last Time BuyPackaging: BulkDatasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 200V |
| Current Rating (Amps) | 1A |
| Mounting Type | Through Hole |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 85°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock/Eject Hooks |
| Number of Positions Loaded | All |
| Termination | Wire Wrap |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | - |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | - |
