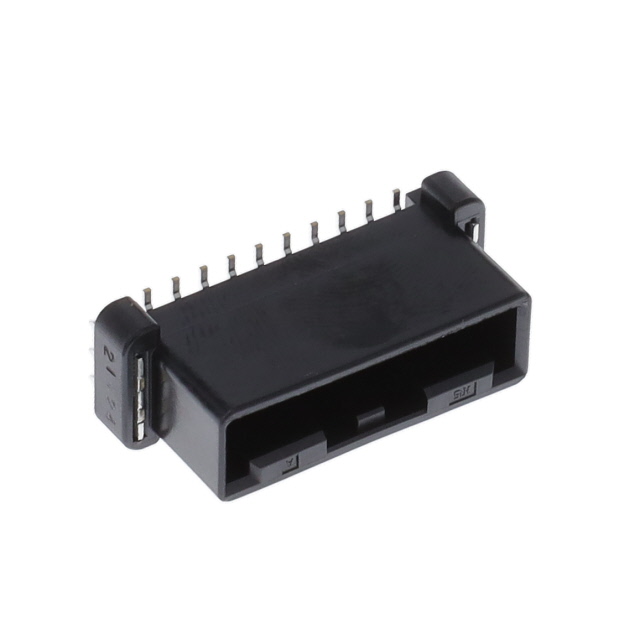

GT8E-10P-2V(55)
CONN PIN HEADER SMD STRManufacturer: Hirose Electric Co Ltd
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Surface Mount 10 position 0.079"" (2.00mm)
Additional Information
Series: GT8ERoHS Status: Request inventory verificationManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Pick and Place, Solder Retention |
| Packaging | Tape & Reel (TR) |
| Connector Type | Header |
| Voltage Rating | 250VAC |
| Current Rating (Amps) | 1A |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.079"" (2.00mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.472"" (12.00mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
