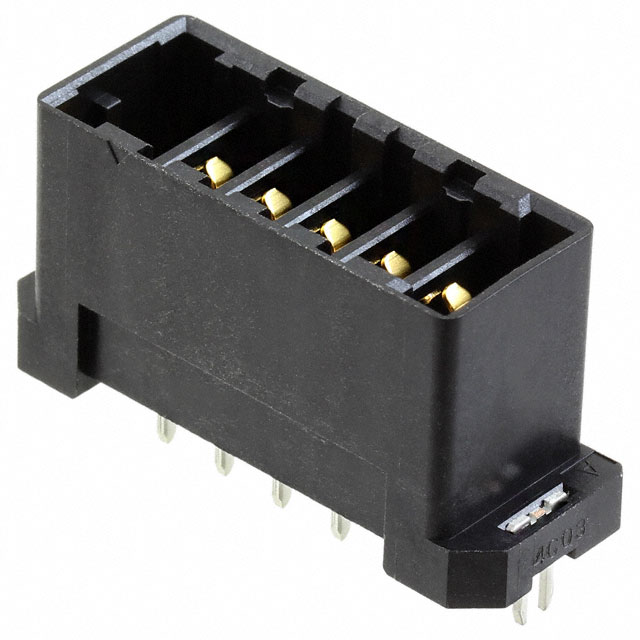

FX30B-5P-3.81DSA20
CONN HEADER VERT 5POS 3.81MMManufacturer: Hirose Electric Co Ltd
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 5 position 0.150"" (3.81mm)
Additional Information
Series: FunctionMax™ FX30BRoHS Status: ROHS3 CompliantManufacturer Lead Time: Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Board Lock |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | 250V |
| Current Rating (Amps) | 13A |
| Mounting Type | Through Hole |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Style | Board to Board |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Blade |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.150"" (3.81mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Rectangular |
| Contact Length - Post | 0.130"" (3.30mm) |
| Insulation Height | 0.559"" (14.20mm) |
| Shrouding | Shrouded - 2 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
Request a Quote
Clients Also Buy
FX30B-2P-7.62DSA25
CONN HEADER VERT 2POS 7.62MM

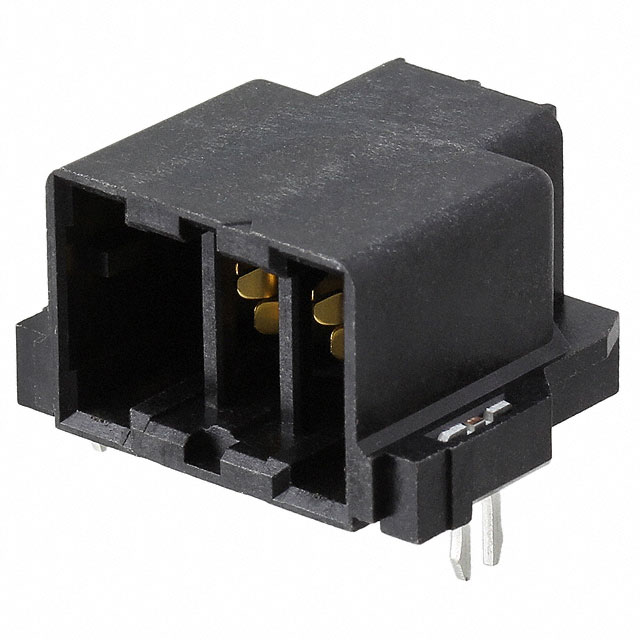

FX30B-2S-3.81DS
CONN RCPT 2POS 0.15 GOLD PCB R/A

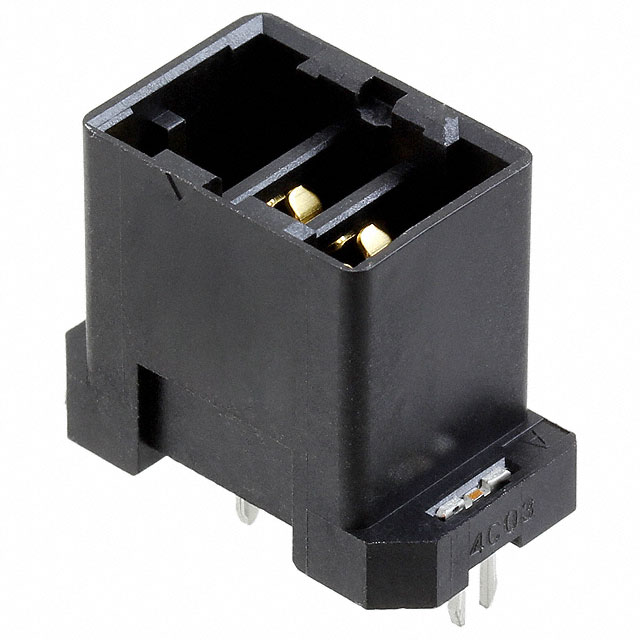

FX30B-2S-3.81DSA
