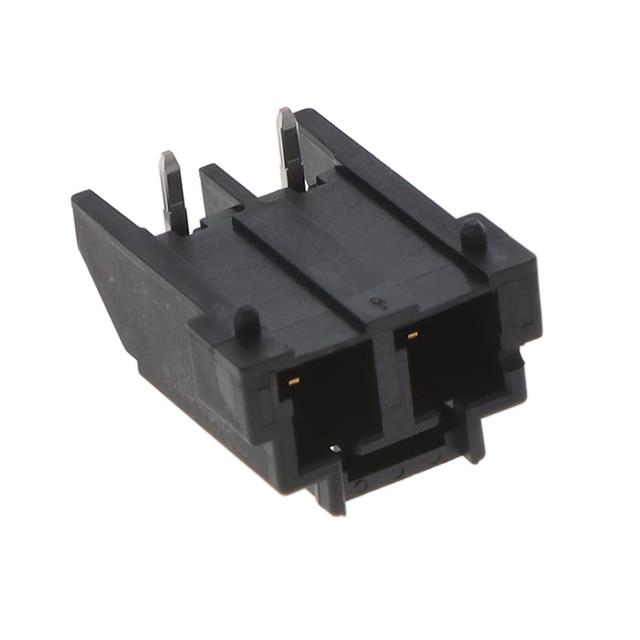

DF22R-2P-7.92DS(53)
CONN HEADER R/A 2POS 7.92MMManufacturer: Hirose Electric Co Ltd
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 2 position 0.312"" (7.92mm)
Additional Information
Series: EnerBee™ DF22RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BagDatasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Board Guide |
| Packaging | Bag |
| Connector Type | Header |
| Voltage Rating | 1000VAC/DC |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 85°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.312"" (7.92mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Gold |
| Contact Shape | Square |
| Contact Length - Post | 0.146"" (3.70mm) |
| Insulation Height | 0.480"" (12.20mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.354"" (9.00mm) |
Request a Quote
Clients Also Buy

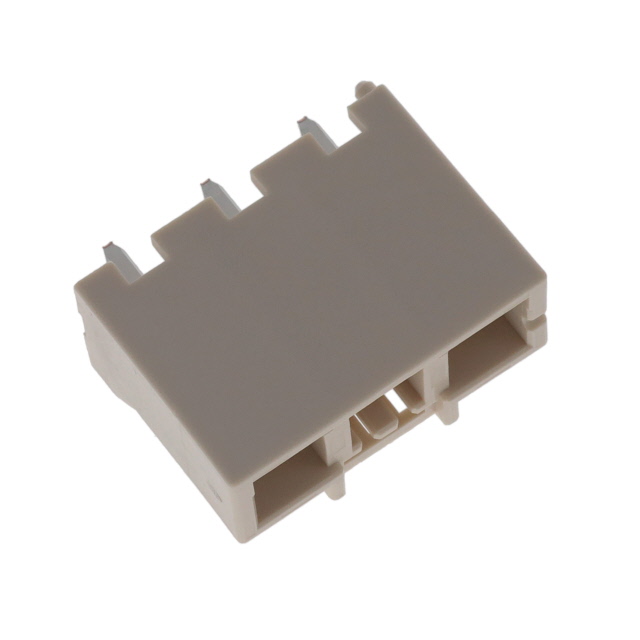

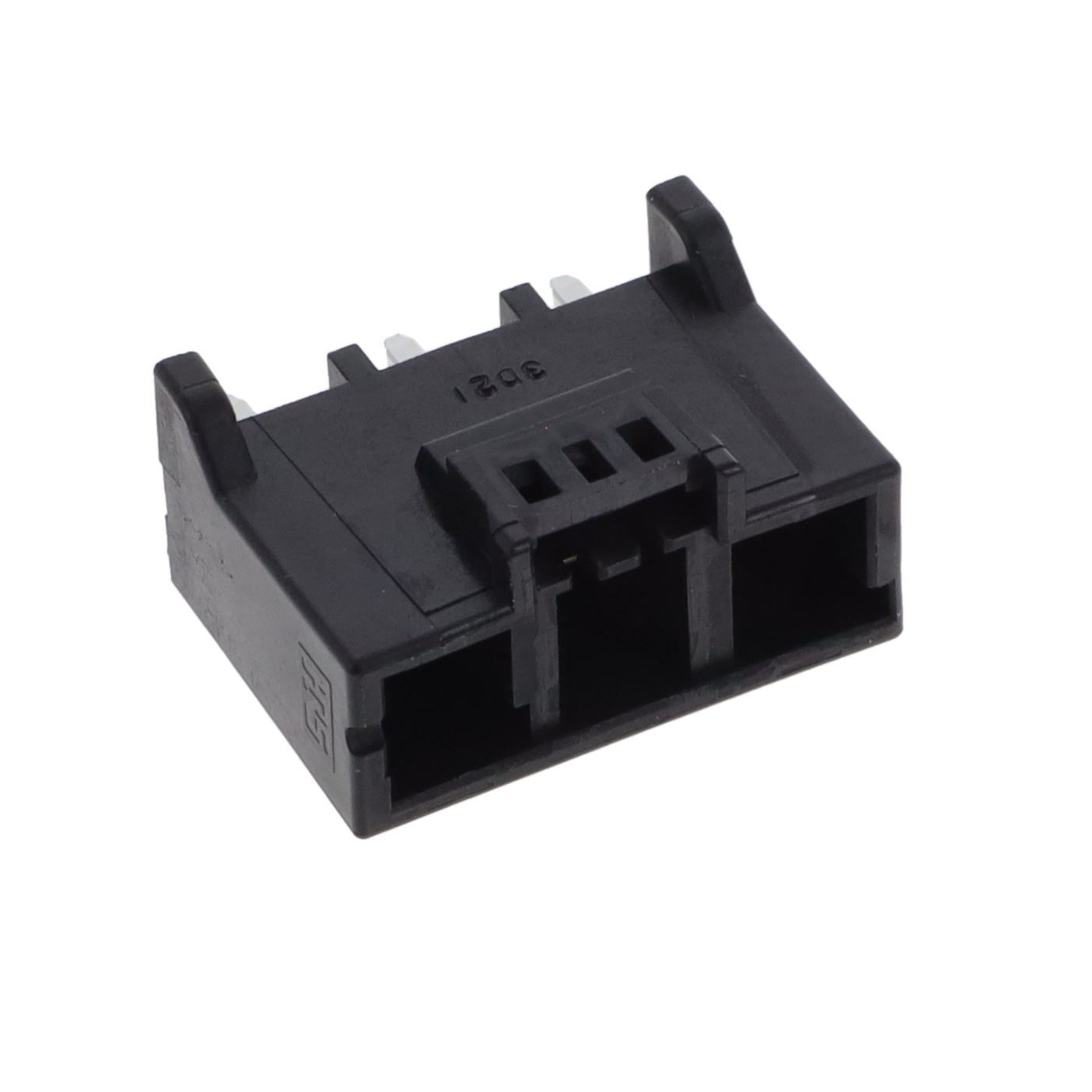

DF22-3P-7.92DSA(53)
CONN HEADER VERT 3POS 7.92MM

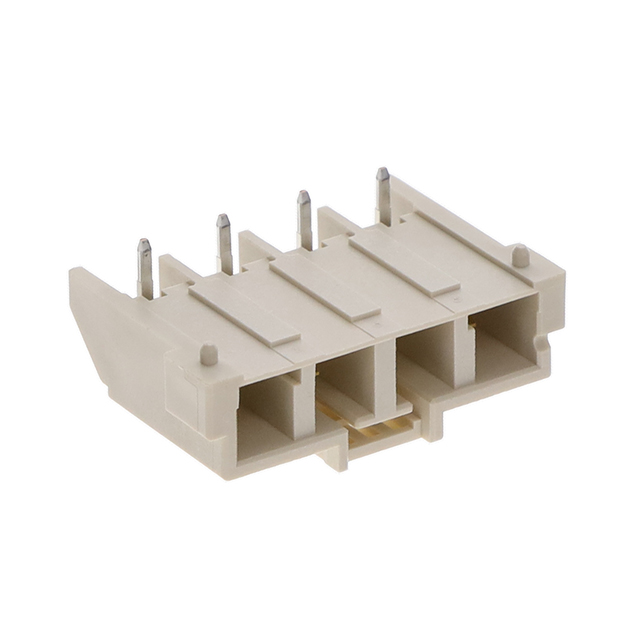

DF22-4P-7.92DS(53)
CONN HEADER R/A 4POS 7.92MM

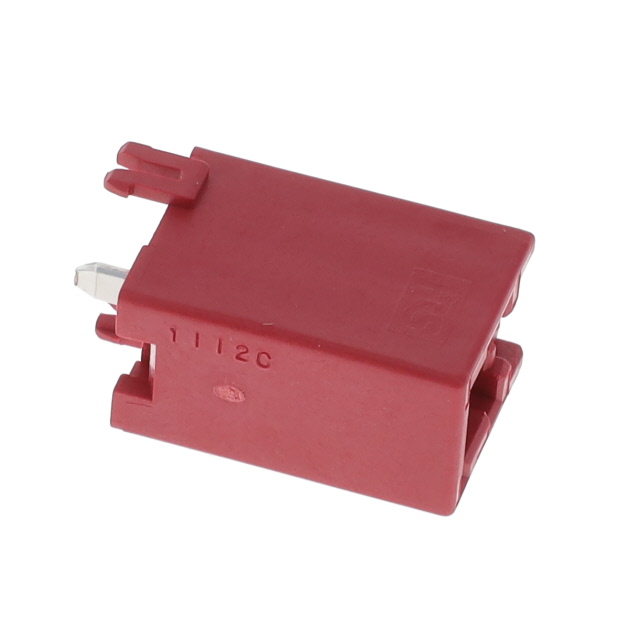

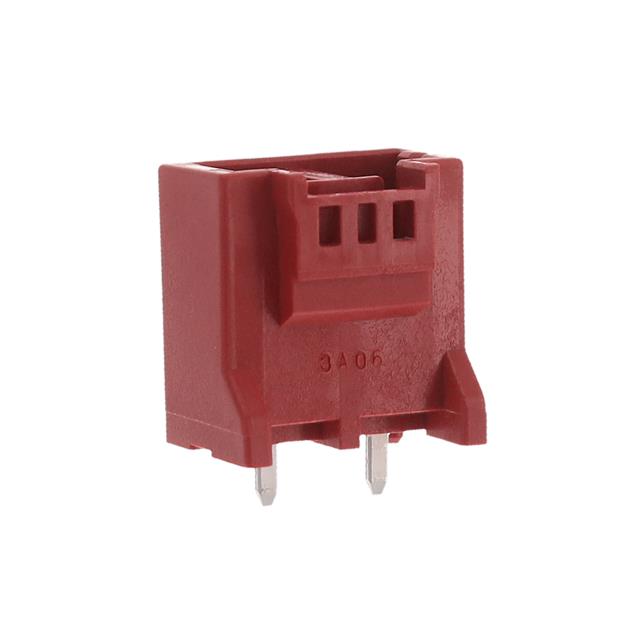

DF22L-1P-7.92DSA(57)
