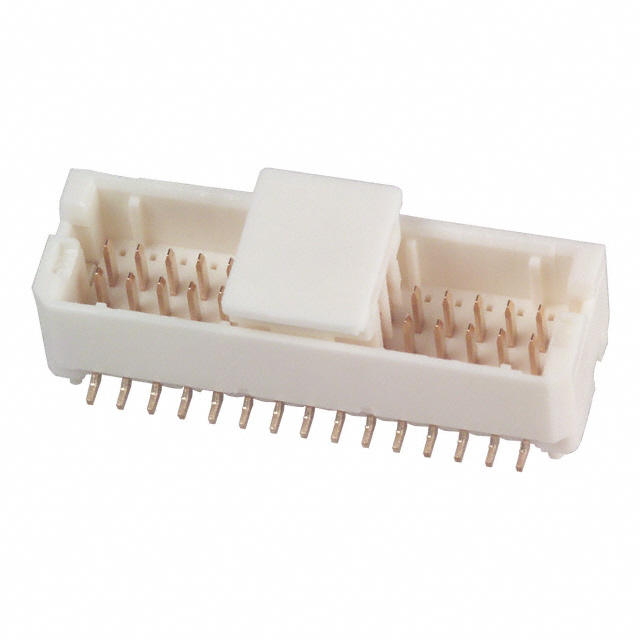

DF20EG-40DP-1V(52)
CONN HEADER SMD 40POS 1MMManufacturer: Hirose Electric Co Ltd
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Surface Mount 40 position 0.039"" (1.00mm)
Additional Information
Series: DF20RoHS Status: Request inventory verificationManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Board Guide, Pick and Place, Solder Retention |
| Packaging | Tape & Reel (TR) |
| Connector Type | Header |
| Voltage Rating | 100VAC/DC |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -35°C ~ 85°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Natural |
| Pitch - Mating | 0.039"" (1.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Gold |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.181"" (4.60mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | 0.039"" (1.00mm) |
| Contact Length - Mating | - |
Request a Quote
