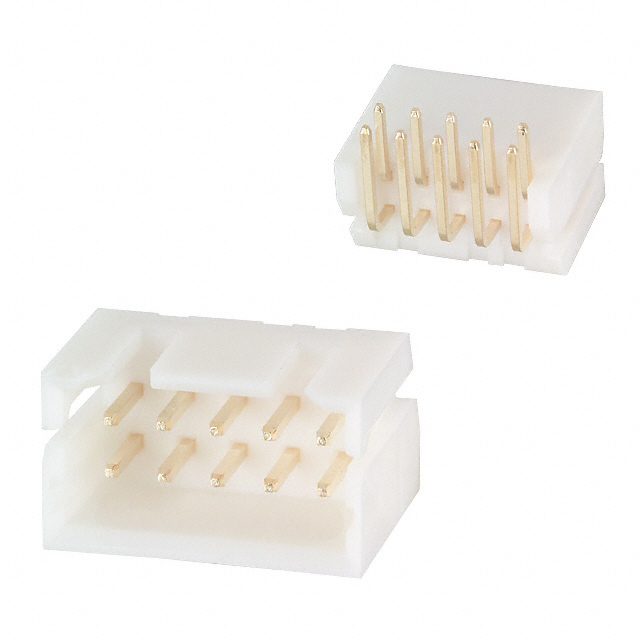

DF1B-10DP-2.5DS(01)
CONN HEADER R/A 10POS 2.5MMManufacturer: Hirose Electric Co Ltd
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 10 position 0.098"" (2.50mm)
Additional Information
Series: DF1BRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDownload Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Keying Slot |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 250V |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -35°C ~ 85°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | White |
| Pitch - Mating | 0.098"" (2.50mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - |
| Contact Shape | Square |
| Contact Length - Post | 0.130"" (3.30mm) |
| Insulation Height | 0.339"" (8.61mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | 0.098"" (2.50mm) |
| Contact Length - Mating | 0.177"" (4.50mm) |
Request a Quote
Clients Also Buy

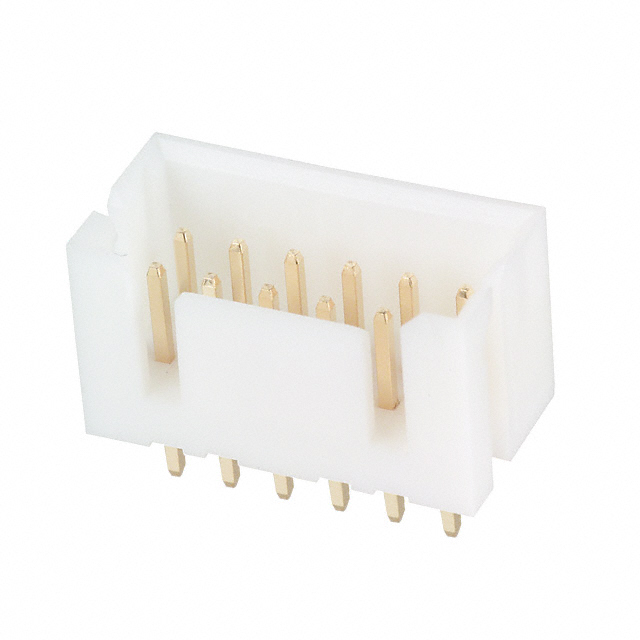

DF1B-12DP-2.5DSA(01)
CONN HEADER VERT 12POS 2.5MM

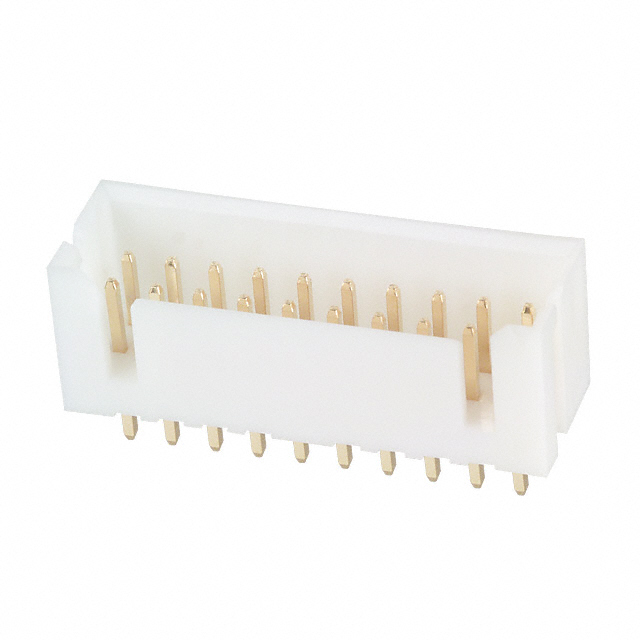

DF1B-20DP-2.5DSA(01)
CONN HEADER VERT 20POS 2.5MM

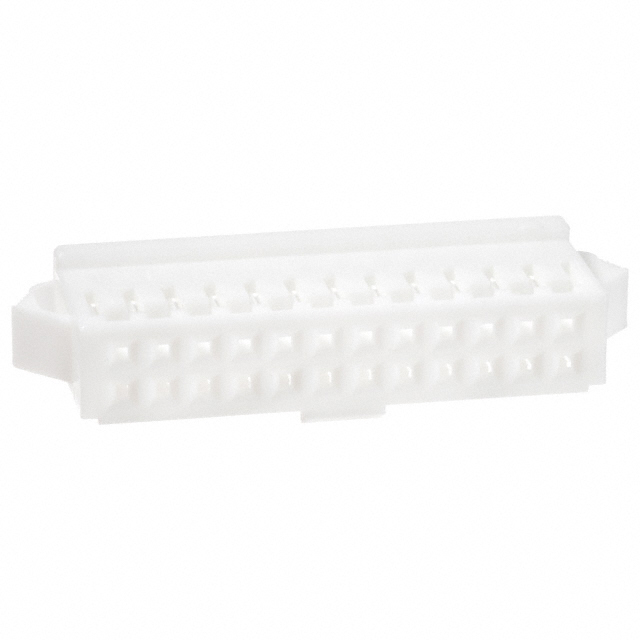

DF1B-24DES-2.5RC
