PCN21B-55PC-2PF
CONN HEADER 55POS 2MM PRESS-FITManufacturer: Hirose Electric Co Ltd
Categories: Hard Metric, Standard
Quality Control: Learn More

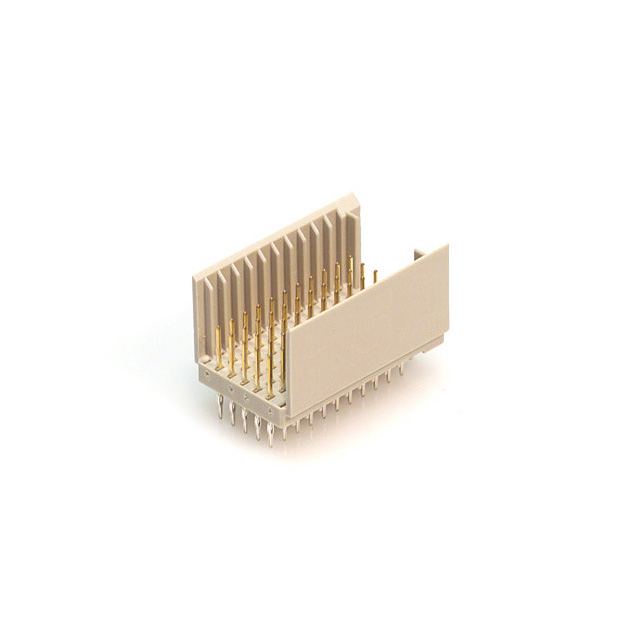

Hirose Electric Co Ltd PCN21 series PCN21B-55PC-2PF is a 55-position, 0.079" (2.00mm) pitch male header connector designed for press-fit termination. This header features a C 11 connector style and is intended for backplane applications. The contacts are gold-plated with a finish thickness of 31.5µin (0.80µm) for enhanced conductivity and durability. Mounting is achieved via a through-hole design. This component is commonly utilized in telecommunications, networking, and industrial automation equipment. The connector is supplied in bulk packaging.
Additional Information
Series: PCN21RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 55 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | C 11 |
| Contact Finish Thickness | 31.5µin (0.80µm) |
