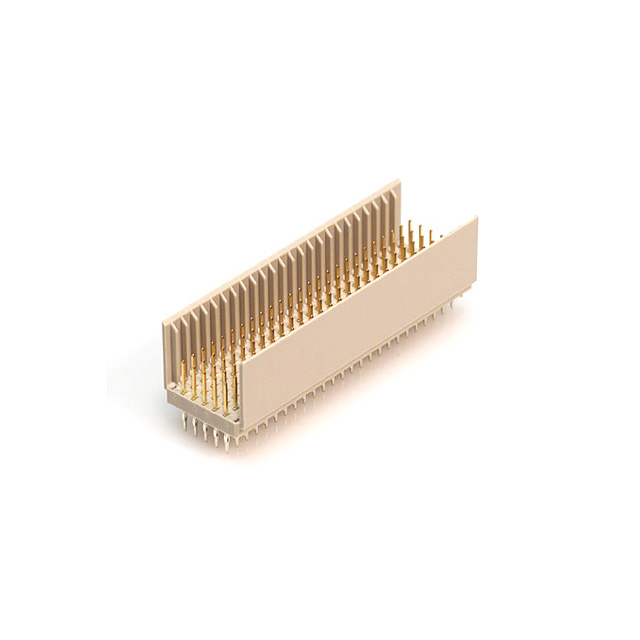

PCN21B-125PB-2PF
CONN HEADER 125POS 2MM PRESS-FITManufacturer: Hirose Electric Co Ltd
Categories: Hard Metric, Standard
Quality Control: Learn More
Hirose Electric Co Ltd PCN21 series header, part number PCN21B-125PB-2PF, is a 125-position, 5-row male pin connector designed for press-fit termination. Featuring a 2.00mm pitch and a B 25 connector style, this component is engineered for robust backplane applications. The contacts are gold-plated with a thickness of 31.5µin (0.80µm) for enhanced conductivity and durability. This through-hole mount header is supplied in bulk packaging and is utilized in industries such as telecommunications, networking, and industrial automation where high-density, reliable interconnectivity is critical.
Additional Information
Series: PCN21RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 125 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | B 25 |
| Contact Finish Thickness | 31.5µin (0.80µm) |
Request a Quote
Clients Also Buy
PCN21-125PB-2C1
CONN SHROUD HARD METRIC 125POS

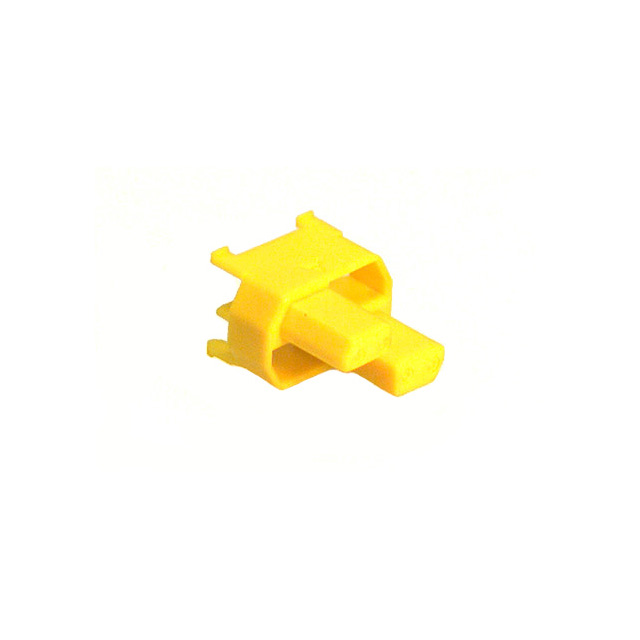

PCN21-P-CK(A)
CONN CODING KEY MALE YELLOW 3.3V

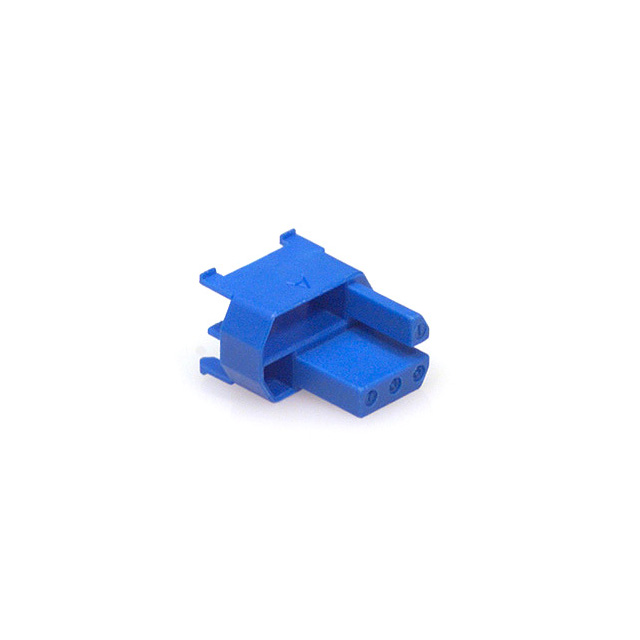

PCN21-P-CK(B)
