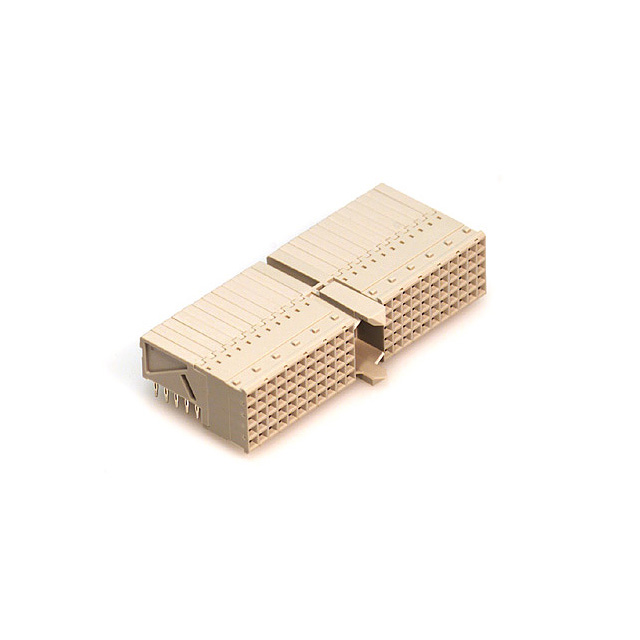

PCN21B-110SA-2PF
CONN RECEPT 110POS 2MM PRESS-FITManufacturer: Hirose Electric Co Ltd
Categories: Hard Metric, Standard
Quality Control: Learn More
Hirose Electric Co Ltd PCN21 series receptacle, part number PCN21B-110SA-2PF, is a 110-position, 5-row female socket connector with a 2.00mm pitch. Designed for press-fit termination, this right-angle, through-hole mounted component features a gold contact finish with a thickness of 31.5µin (0.80µm) for enhanced conductivity and durability. The connector usage is specified as front board, with all 110 positions loaded. This robust connector is suitable for demanding applications within the automotive, industrial automation, and telecommunications sectors where reliable, high-density interconnectivity is critical. The PCN21B-110SA-2PF offers a hard metric, standard connector style for efficient board-to-board or cable-to-board connections.
Additional Information
Series: PCN21RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 110 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Front Board |
| Connector Style | A 22 |
| Contact Finish Thickness | 31.5µin (0.80µm) |
