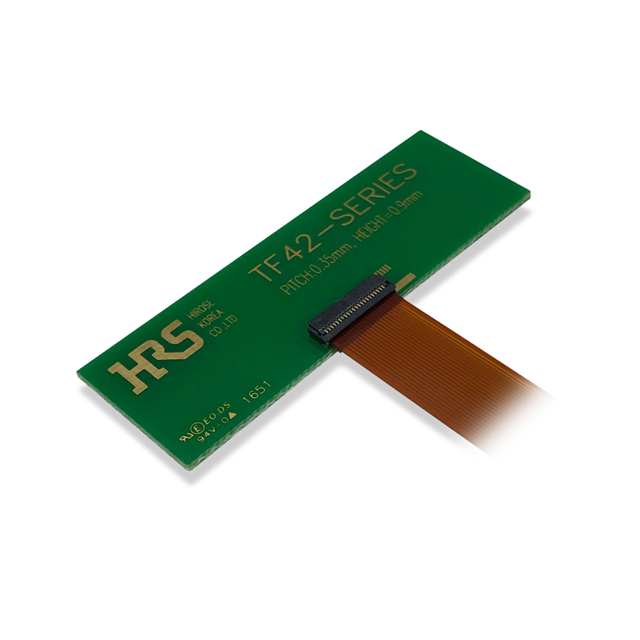

TF42-24S-0.35SH(895)
CONN FPC BOTTOM 24POS 0.35MM R/AManufacturer: Hirose Electric Co Ltd
Categories: FFC, FPC (Flat Flexible) Connector Assemblies
Quality Control: Learn More
24 Position FPC Connector Contacts, Bottom 0.014"" (0.35mm) Surface Mount, Right Angle
Additional Information
Series: TF42RoHS Status: Request inventory verificationManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Solder Retention |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Gold |
| Voltage Rating | 30V |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 24 |
| Pitch | 0.014"" (0.35mm) |
| Operating Temperature | -55°C ~ 85°C |
| Termination | Solder |
| Height Above Board | 0.035"" (0.88mm) |
| Locking Feature | Flip Lock, Backlock |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.20mm |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Notched |
| Flat Flex Type | FPC |
| Connector/Contact Type | Contacts, Bottom |
Request a Quote
