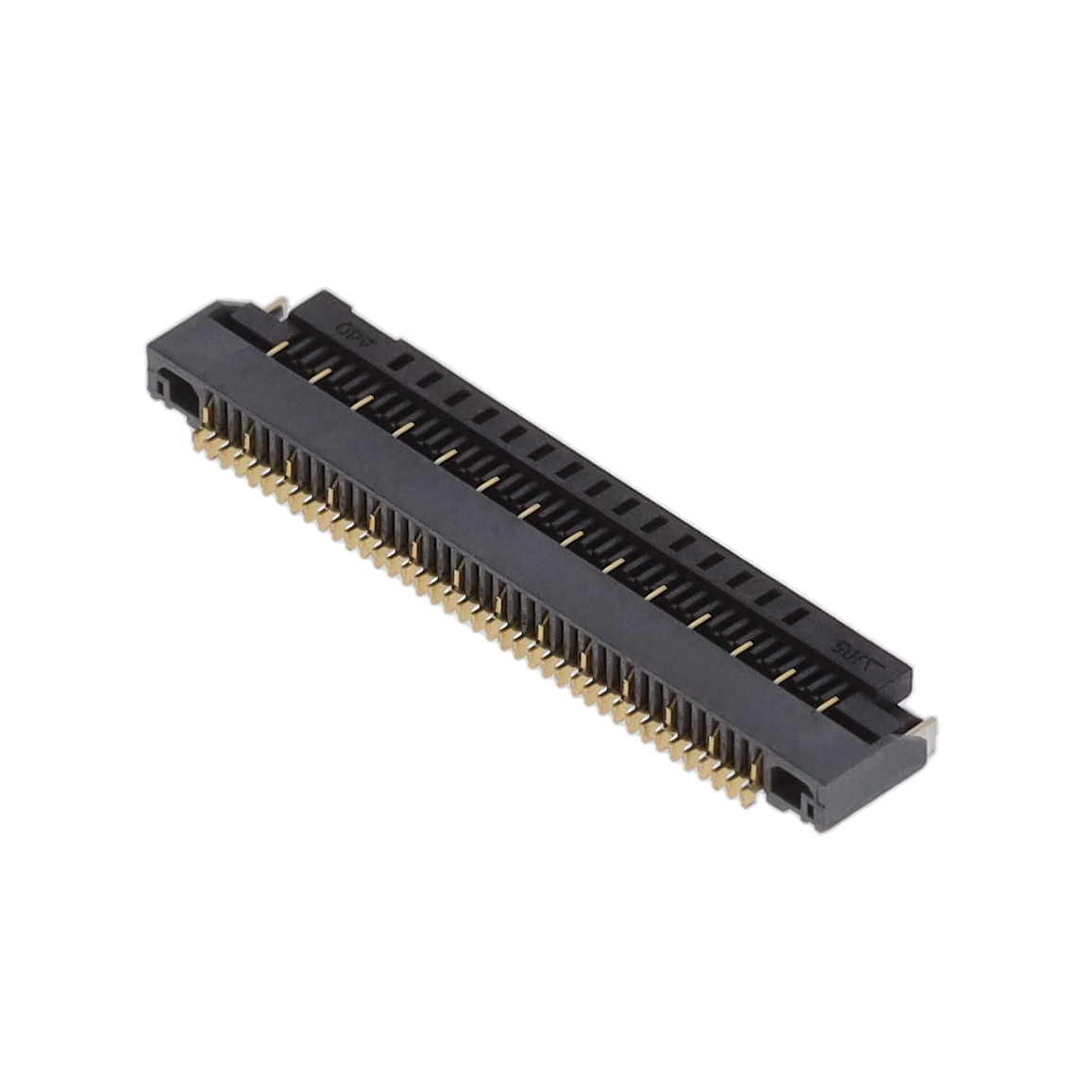

FH55M-40S-0.4SH
CONN FFC FPC 0.4MM SMDManufacturer: Hirose Electric Co Ltd
Categories: FFC, FPC (Flat Flexible) Connector Assemblies
Quality Control: Learn More
40 Position FPC Connector Receptacle 0.016"" (0.40mm) Surface Mount, Right Angle
Additional Information
Series: FH55MRoHS Status: Request inventory verificationManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Gold |
| Voltage Rating | 40V |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 40 |
| Pitch | 0.016"" (0.40mm) |
| Operating Temperature | -55°C ~ 85°C |
| Termination | Solder |
| Height Above Board | 0.059"" (1.50mm) |
| Locking Feature | Flip Lock |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.30mm |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Tabbed |
| Flat Flex Type | FPC |
| Connector/Contact Type | Receptacle |
Request a Quote
